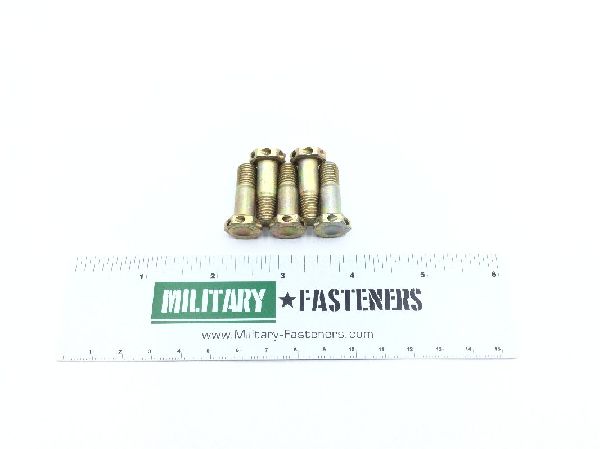

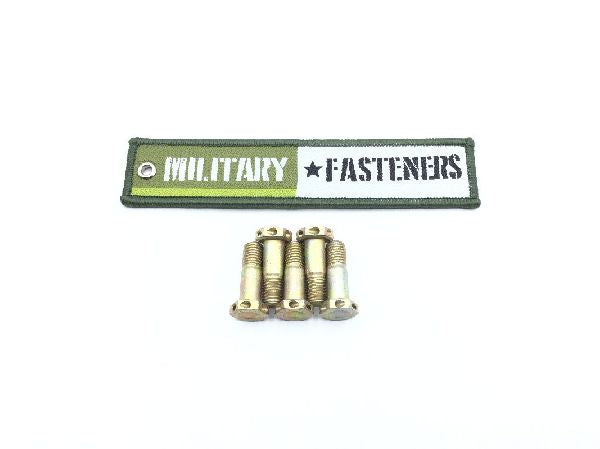

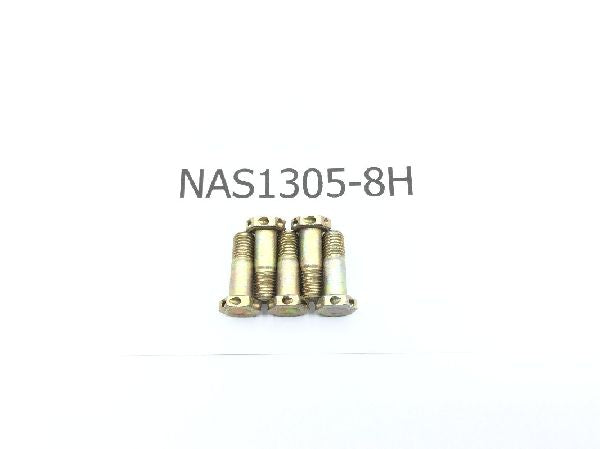

NAS1305-8H Machine Bolt

Product Series: NAS
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $11.09

Units per Pack 10

Price per Pack $110.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $110.90

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.954 inches and 0.984 inches
Grip Diameter: Between 0.311 inches and 0.312 inches
Grip Length: Between 0.49 inches and 0.51 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1305 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.444 inches and 0.494 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
Hole Diameter: 0.070 inches
