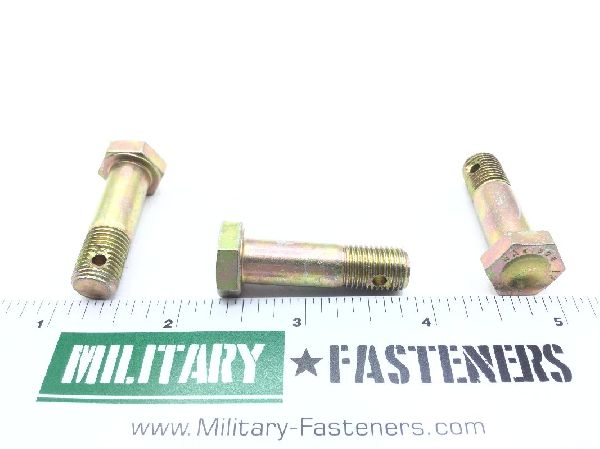

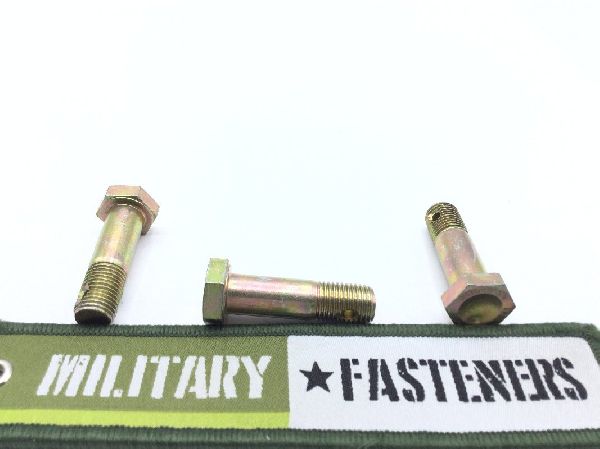

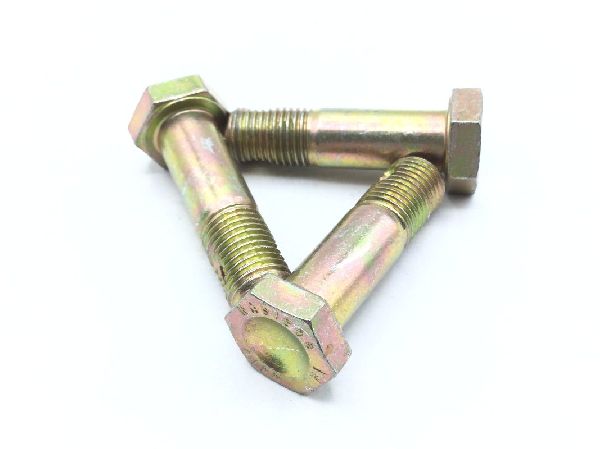

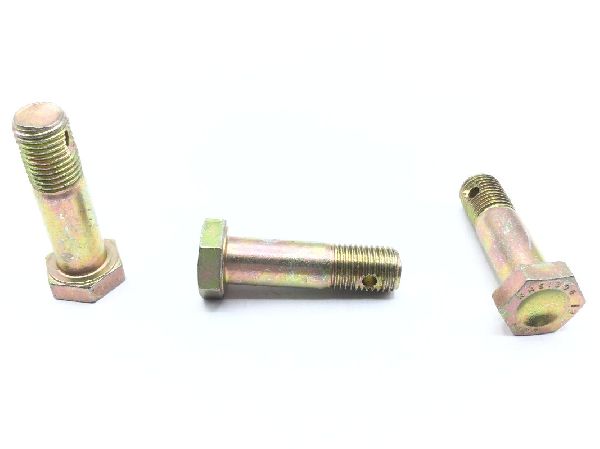

NAS1306-12D Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.131 inches first hole
Fastener Length: 1.328 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 0.750 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.188 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Specification Data: 80205-nas1306 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.564 inches
