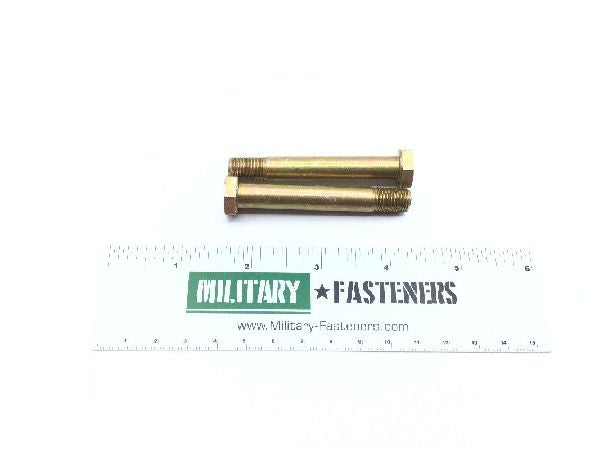

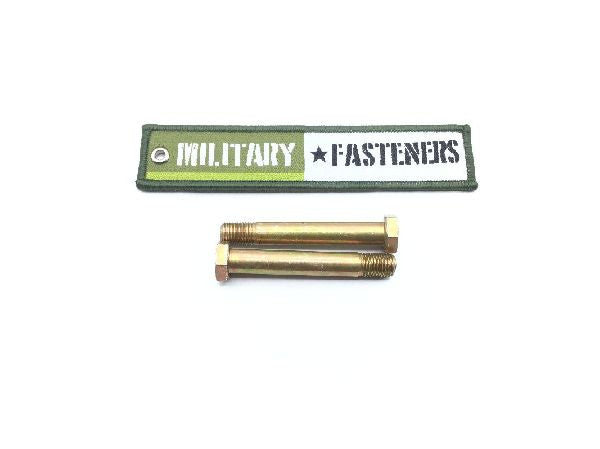

NAS1306-31 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 ty2

Thread Class

Fastener Length: 2.516 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 1.938 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.188 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1306 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.564 inches
