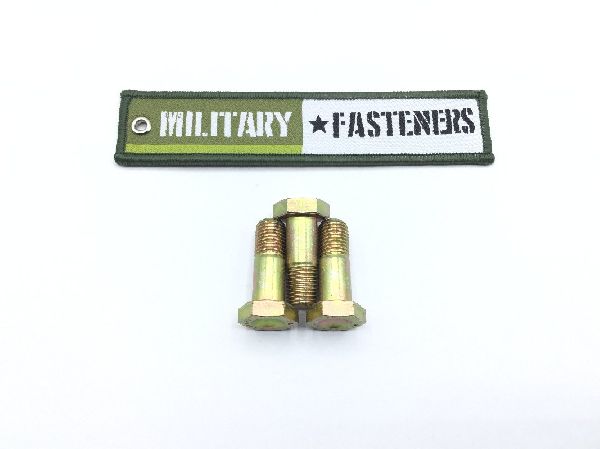

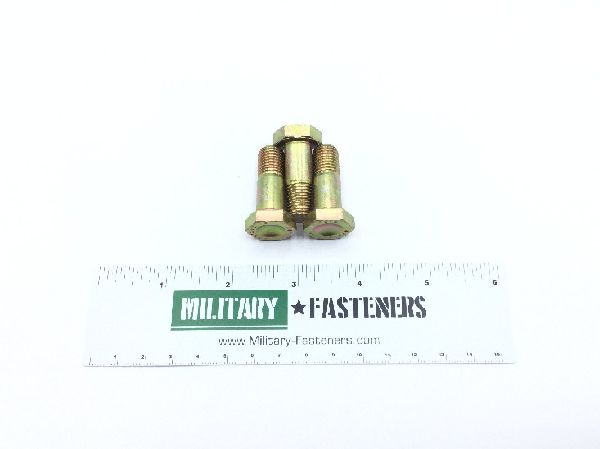

NAS1307-10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 1.204 inches and 1.234 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 0.615 inches and 0.635 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.219 inches and 0.234 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.569 inches and 0.619 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.679 inches and 0.690 inches
