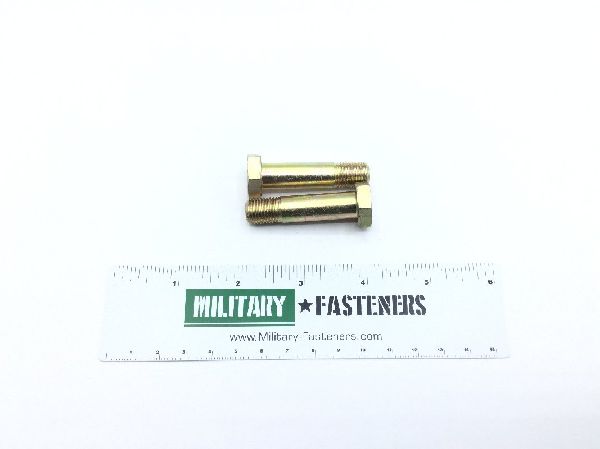

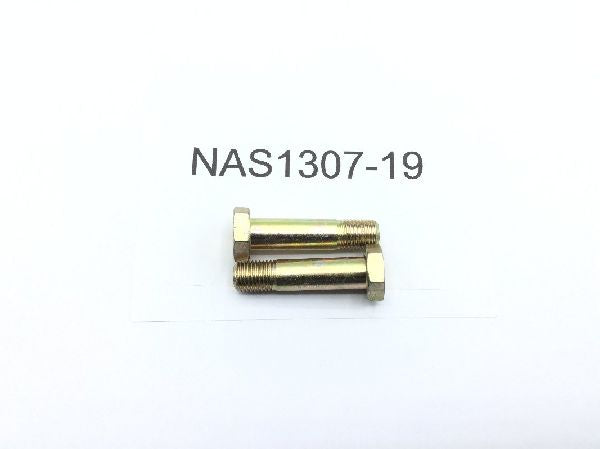

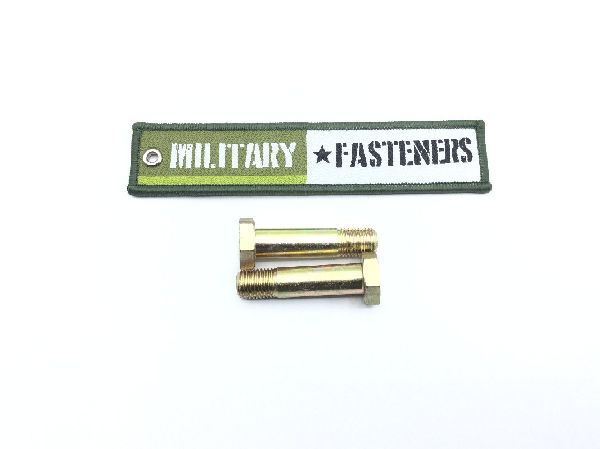

NAS1307-19 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $28.92

Units per Pack 2

Price per Pack $57.84

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $57.84

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.867 inches and 1.897 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 1.178 inches and 1.198 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.219 inches and 0.234 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6607 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.669 inches and 0.719 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
