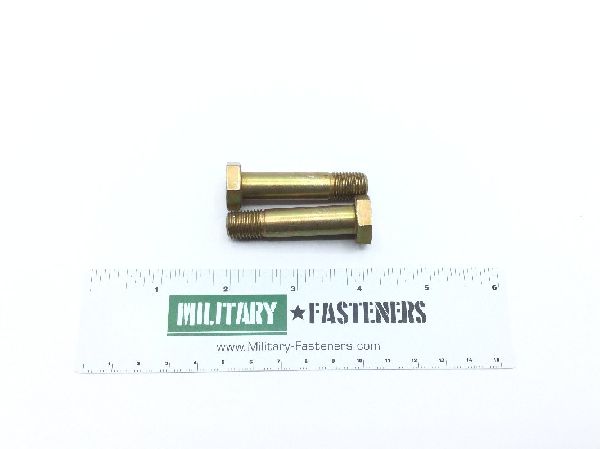

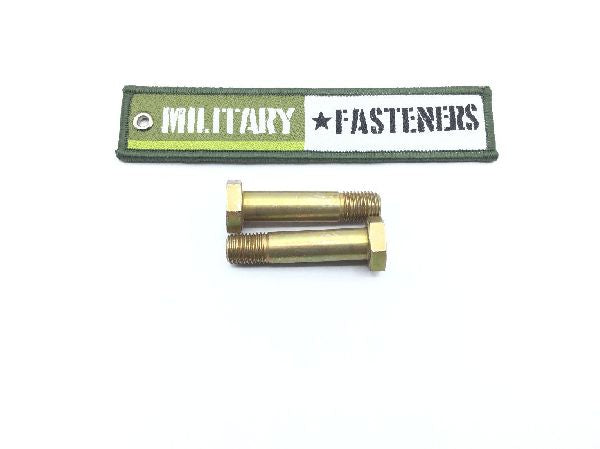

NAS1307-21 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 1.991 inches and 2.021 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 1.302 inches and 1.322 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.219 inches and 0.239 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6607 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.659 inches and 0.719 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
