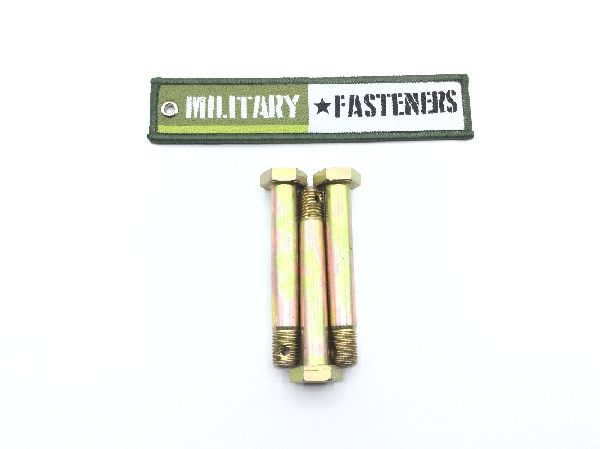

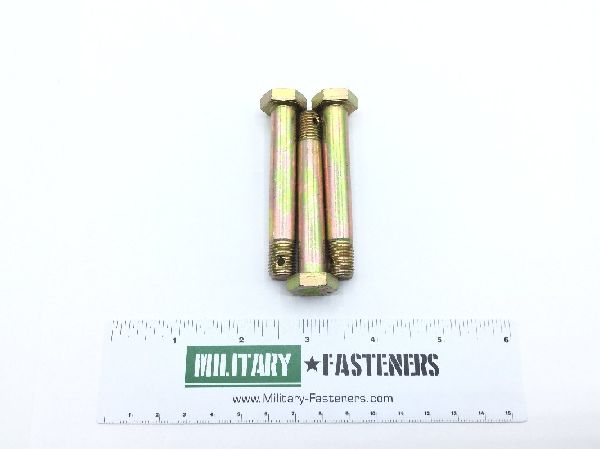

NAS1307-36D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

cl2 federal specification single treatment response tyii qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.644 inches first hole
Fastener Length: 2.844 inches
Grip Diameter: Between 0.436 inches and 0.437 inches
Grip Length: Between 2.240 inches and 2.260 inches
Head Height: Between 0.219 inches and 0.234 inches
Material Specification: Ams6415 assn standard 1st material response or ams6322 assn standard 2nd material response or mil-s-6049 military specification 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Thread Diameter: 0.437 inches
Thread Direction: Right-hand
Thread Length: 0.594 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.679 inches and 0.690 inches
