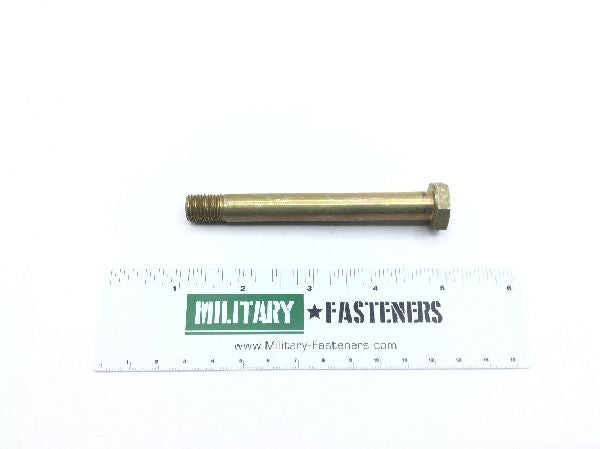

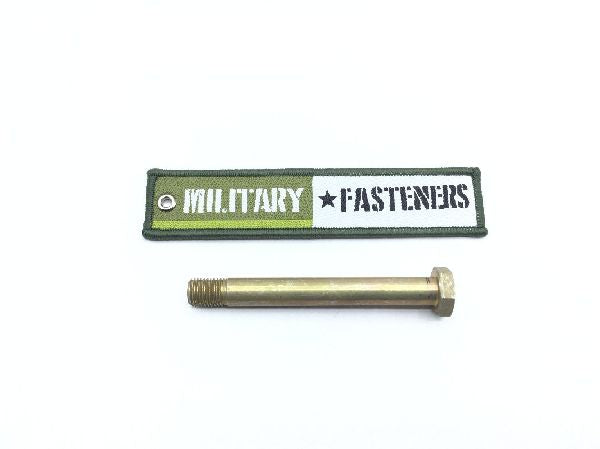

NAS1307-50 Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: 3.719 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: 3.125 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.219 inches and 0.234 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1303 thru 1320 professional/industrial association standard
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: 0.594 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.679 inches and 0.690 inches
