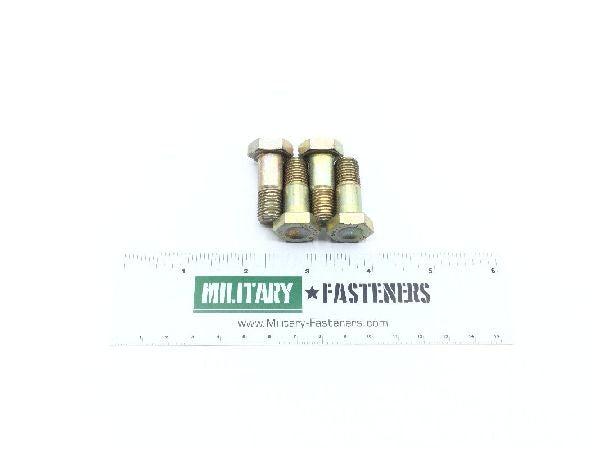

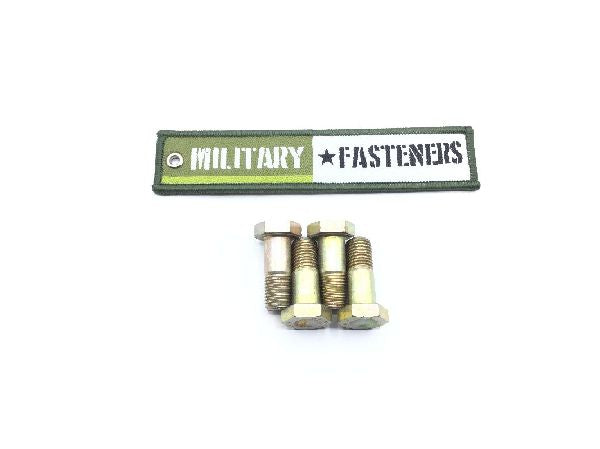

NAS1307-9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 4340 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Fastener Length: 1.156 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: 0.562 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.219 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1307 professional/industrial association standard
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: 0.594 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.679 inches and 0.690 inches
