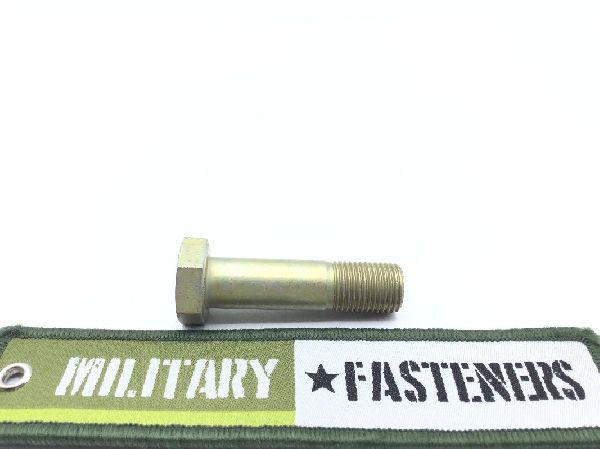

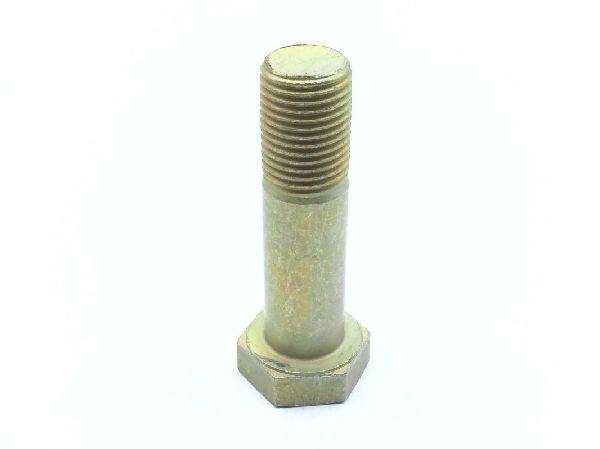

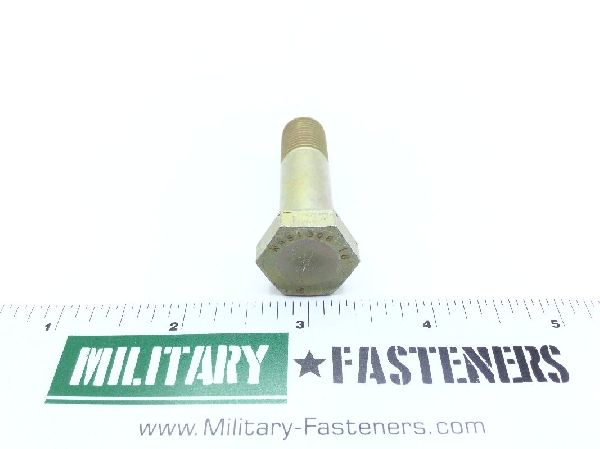

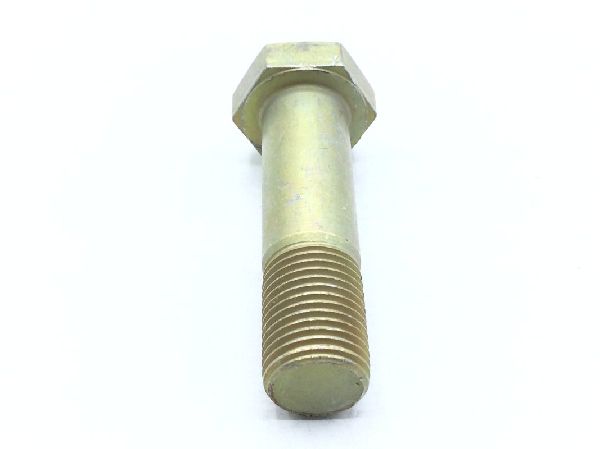

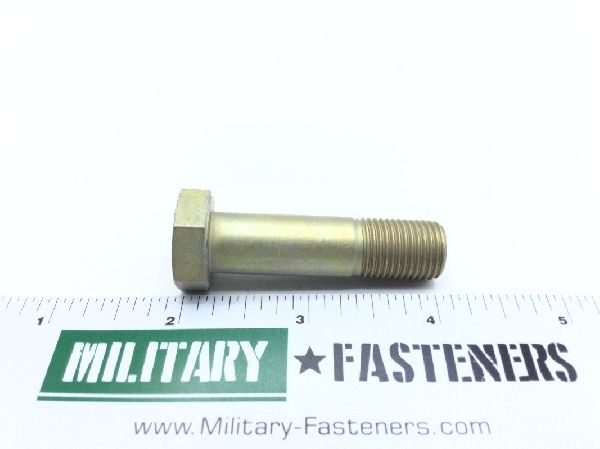

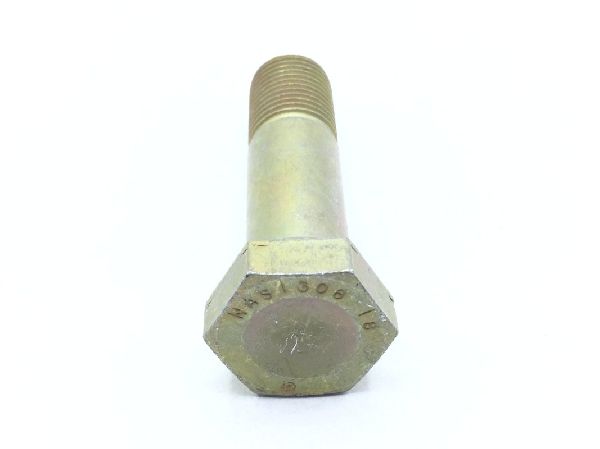

NAS1308-18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $52.59

Units per Pack 1

Price per Pack $52.59

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $52.59

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response qq-p-416 type 2

Thread Class

Fastener Length: 1.860 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: 1.125 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.25 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1308 professional/industrial association standard
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.741 inches and 0.752 inches
