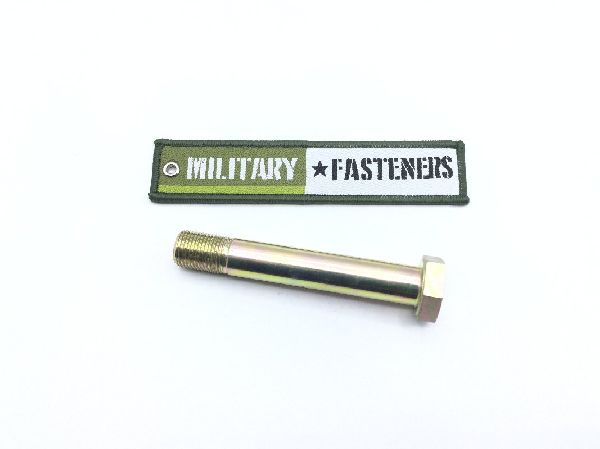

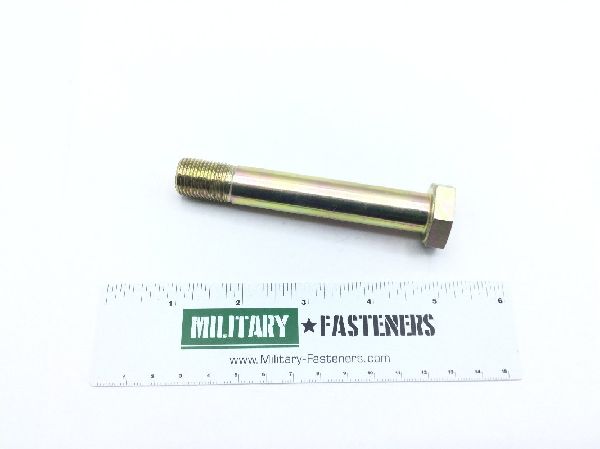

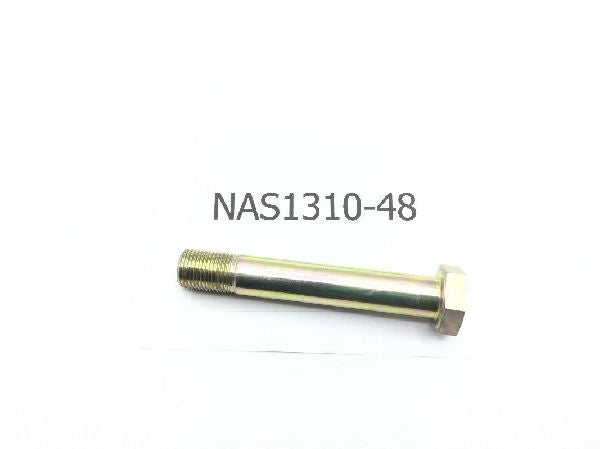

NAS1310-48 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $87.24

Units per Pack 1

Price per Pack $87.24

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $87.24

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 3.887 inches and 3.917 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 2.990 inches and 3.010 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.312 inches and 0.327 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1310 professional/industrial association standard
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.877 inches and 0.927 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.928 inches and 0.940 inches
