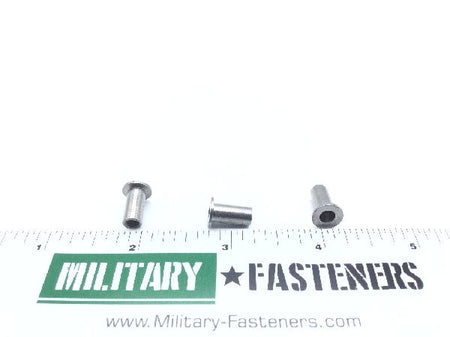

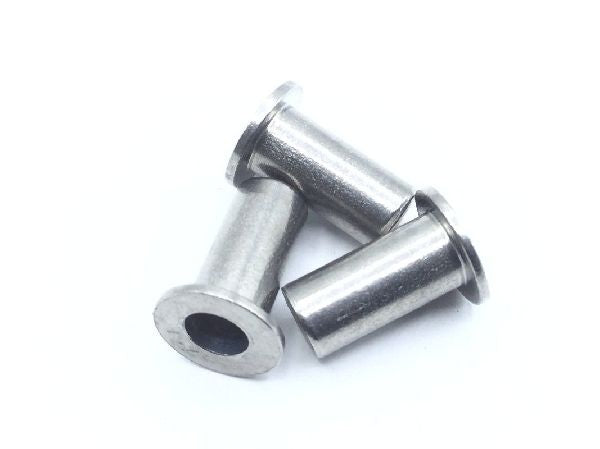

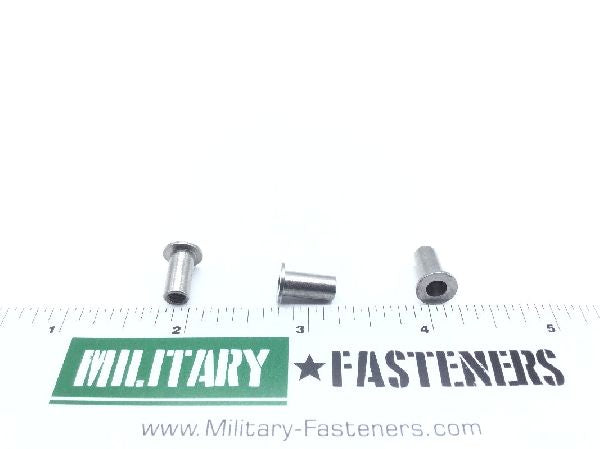

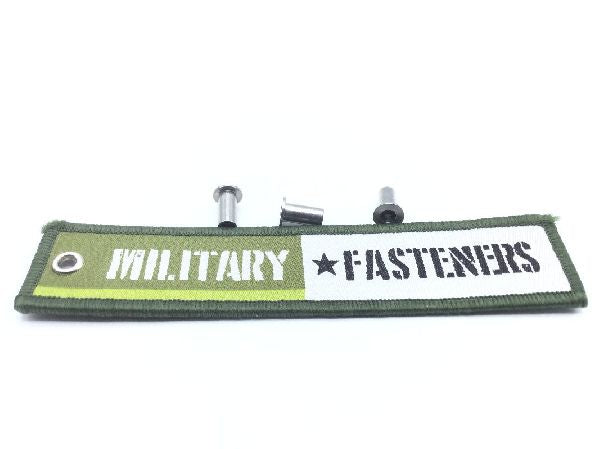

NAS1329C08-75 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat

Material

Steel comp 430

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Err Default: +0.010 to 0.075 inches
Head Height: 0.032 inches
Material Specification: Form 1 federal specification single material response qq-w-423
Nut Diameter: Between 0.217 inches and 0.221 inches
Nut Length: Between 0.423 inches and 0.453 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1329 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: Between 0.342 inches and 0.372 inches
