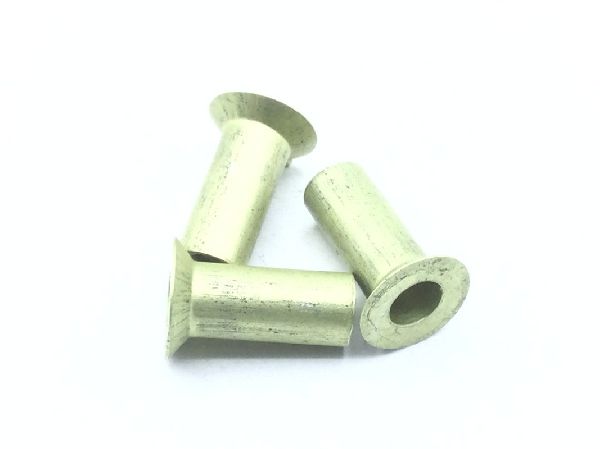

NAS1330A04K81 Self-Locking Extended Washer Nut

NAS1330A04K81 Self-Locking Extended Washer Nut (2)

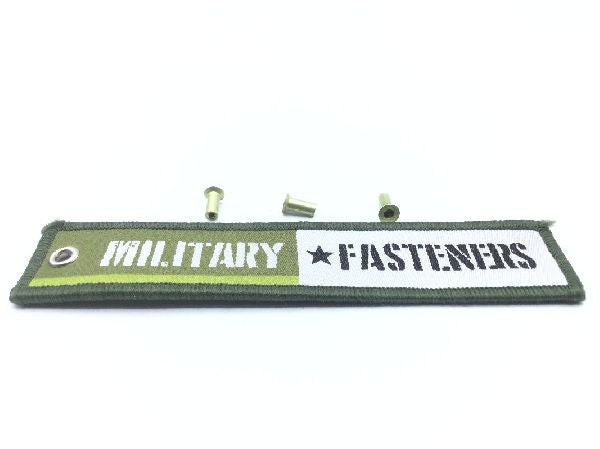

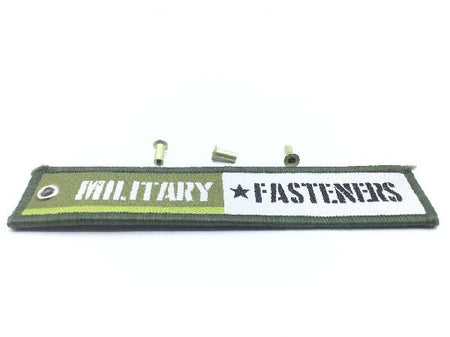

NAS1330A04K81 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1330A04K81 Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $2.35

Units per Pack 25

Price per Pack $58.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $58.75

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Aluminum alloy

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.112 inches

Err Default: +0.050 to 0.081 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Head Height: 0.051 inches
Key Length: 0.051 inches
Nut Diameter: Between 0.151 inches and 0.155 inches
Nut Length: Between 0.355 inches and 0.385 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Head Diameter: 0.263 inches
