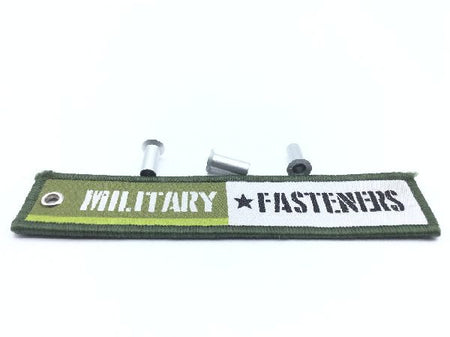

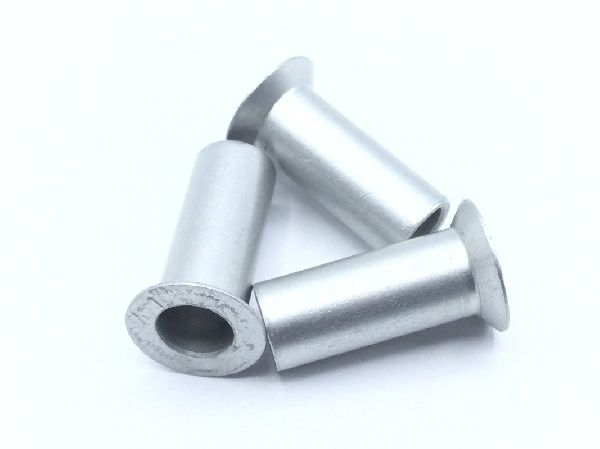

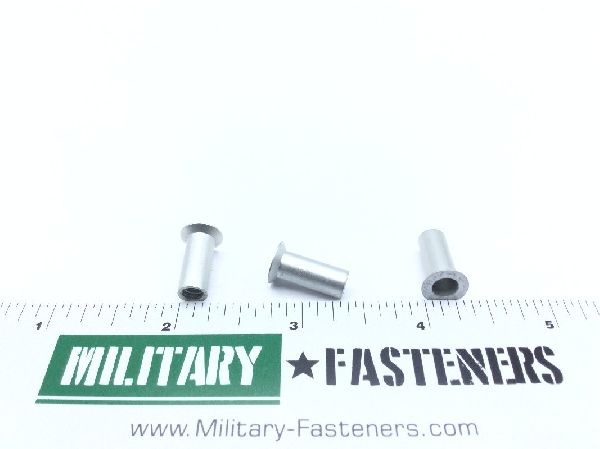

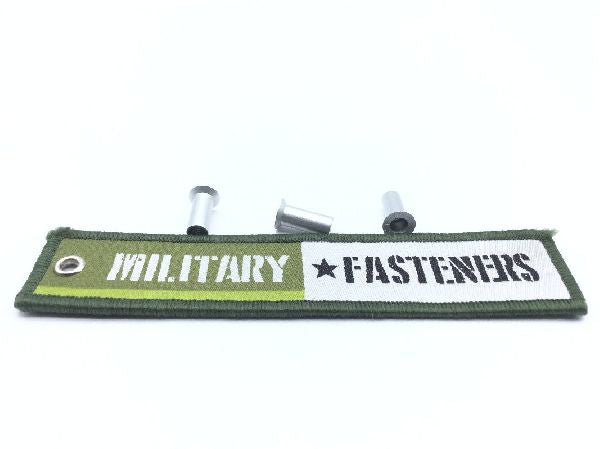

NAS1330A3-166 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Aluminum alloy 3003 or aluminum alloy 6053 or aluminum alloy 6061

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Err Default: +0.116/+0.166 inches
Head Countersink Angle: 100.00 degrees
Material Specification: Mil-r-1150 military specification all material responses
Nut Diameter: 0.250 inches
Nut Length: 0.625 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
