NAS1330C3K166 Plain Blind Rivet Nut
NAS1330C3K166 Plain Blind Rivet Nut (2)
NAS1330C3K166 Plain Blind Rivet Nut (3)

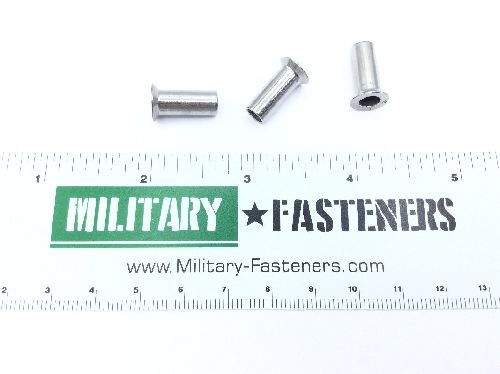

NAS1330C3K166 Plain Blind Rivet Nut
NAS1330C3K166 Plain Blind Rivet Nut (2)

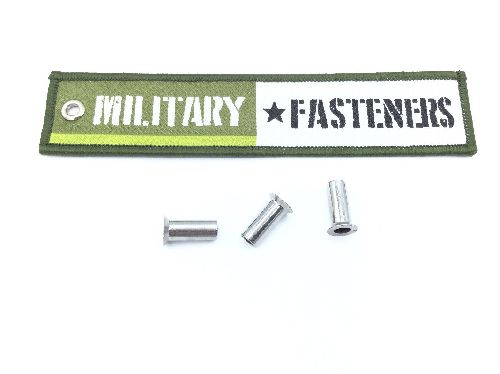

NAS1330C3K166 Plain Blind Rivet Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1330C3K166 Plain Blind Rivet Nut

Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk reverse keyed
Material
Steel comp 430
Surface Treatment
Type 2 federal specification single treatment response qq-p-35
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.190 inches
Err Default
+0.116 to 0.166 inches
Head Countersink Angle
Between 99.00 degrees and 101.00 degrees
Head Height
0.065 inches
Key Length
0.065 inches
Material Specification
Form 1 federal specification single material response qq-w-423
Nut Diameter
Between 0.246 inches and 0.250 inches
Nut Length
Between 0.610 inches and 0.640 inches
Nut Style
Blind rivet w/smooth round shank
Shank End Type
Open
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Head Diameter
0.391 inches
