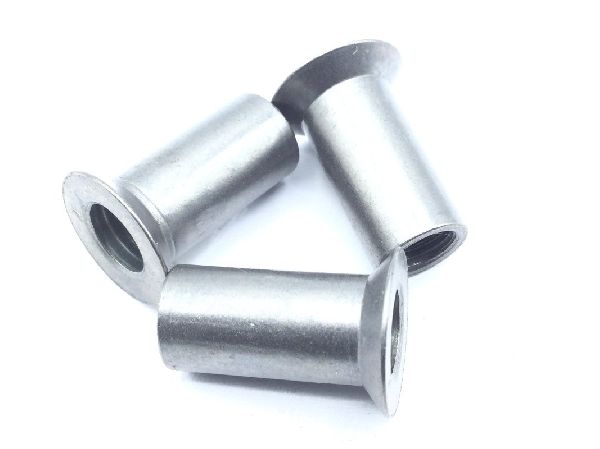

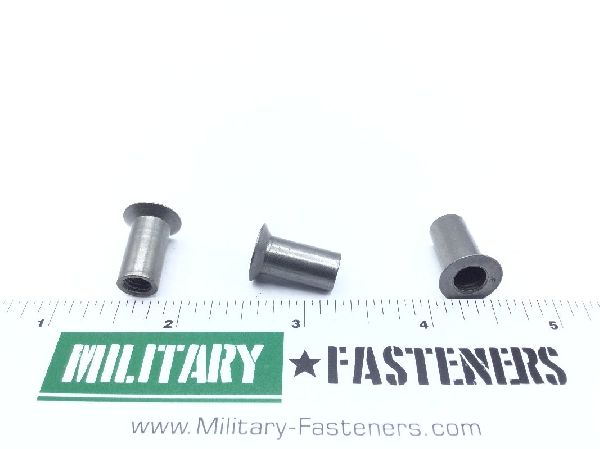

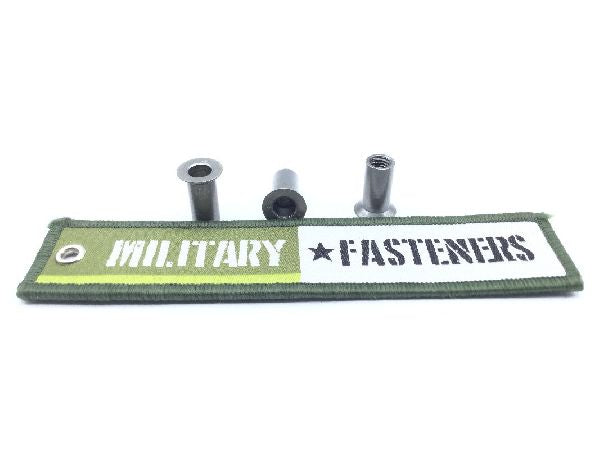

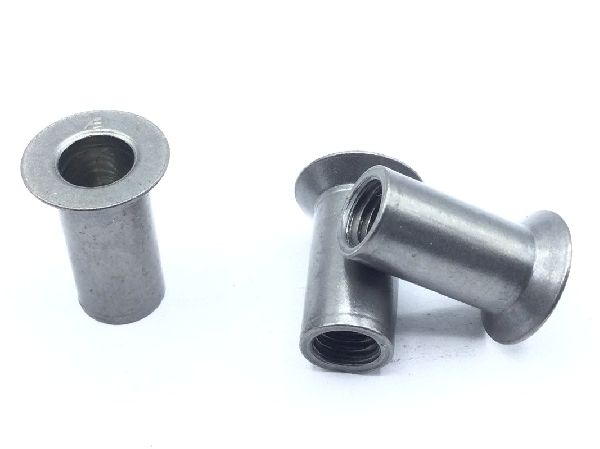

NAS1330C4-151 Plain Blind Rivet Nut

Product Series: NAS
ECCN: 9A991
Schedule: 7318.16.0085

Price per Unit $1.73

Units per Pack 20

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 430

Surface Treatment

Type 2 federal specification single treatment response qq-p-35

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Err Default: +0.089 to 0.151 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Material Specification: Form 1 federal specification single material response qq-w-423
Nut Diameter: Between 0.328 inches and 0.332 inches
Nut Length: Between 0.672 inches and 0.702 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Head Diameter: 0.529 inches
