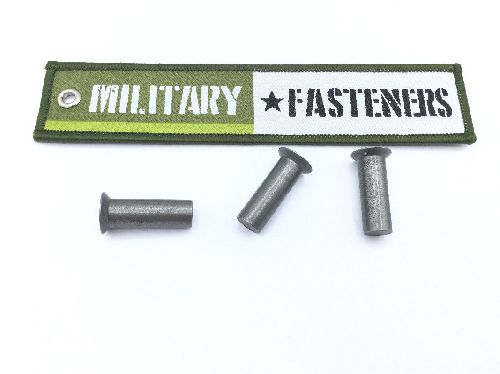

NAS1330C4KB151 Plain Blind Rivet Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

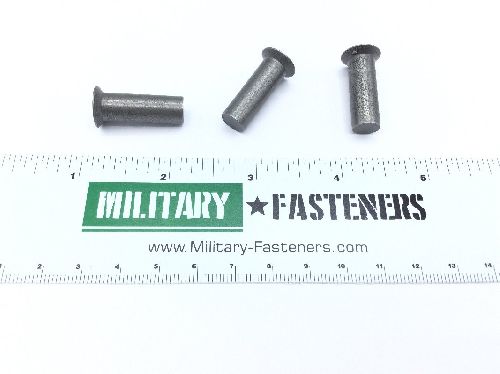

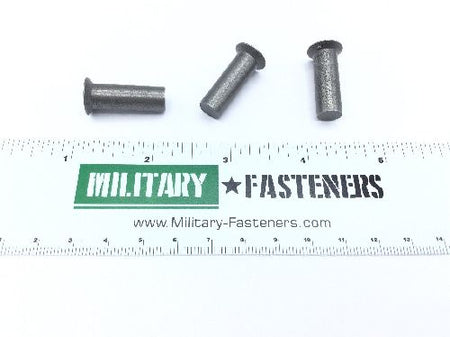

NAS1330C4KB151 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Steel comp 430

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Err Default: +0.089 to 0.151 inches
Head Countersink Angle: Between 99 degrees and 101 degrees
Head Height: 0.089 inches
Key Length: 0.089 inches
Material Specification: Form 1 federal specification single material response qq-w-423
Nut Diameter: Between 0.328 inches and 0.332 inches
Nut Length: Between 0.985 inches and 1.015 inches
Nut Style: Blind rivet with smooth round shank
Shank End Type: Closed
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Head Diameter: 0.529 inches
