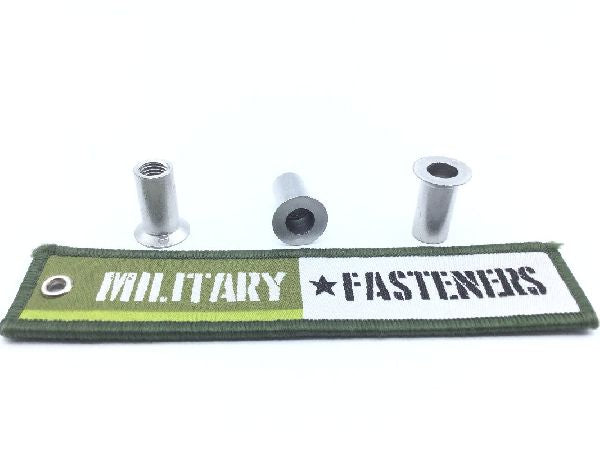

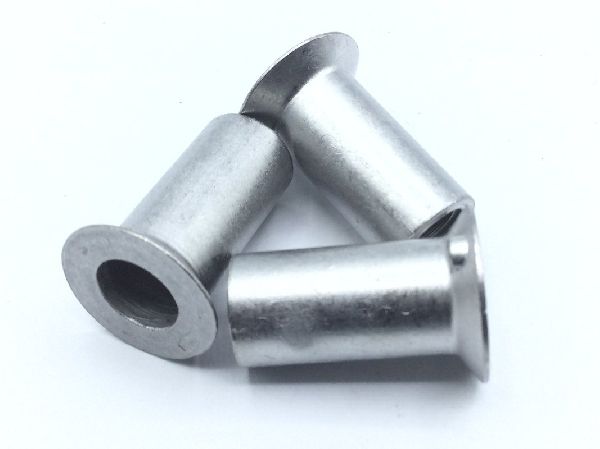

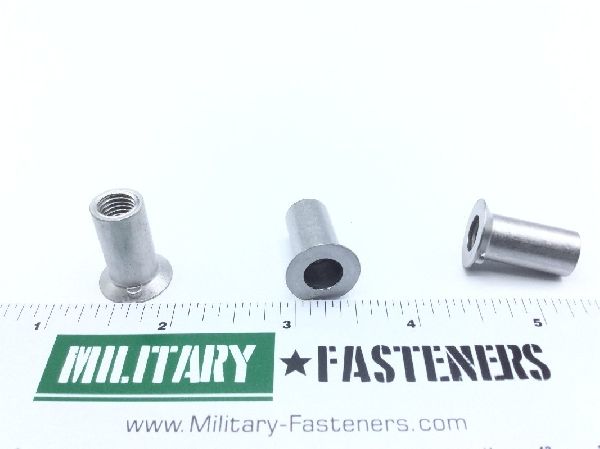

NAS1330C5K181 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $10.08

Units per Pack 5

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Steel comp 430

Surface Treatment

Type 2 federal specification single treatment response qq-p-35

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Err Default: +0.106 to 0.181 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Head Height: 0.104 inches
Key Length: 0.104 inches
Material Specification: Form 1 federal specification single material response qq-w-423
Nut Diameter: Between 0.409 inches and 0.413 inches
Nut Length: Between 0.829 inches and 0.859 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Head Diameter: 0.656 inches
