NAS1330H04K81L Plain Blind Rivet Nut
NAS1330H04K81L Plain Blind Rivet Nut (2)
NAS1330H04K81L Plain Blind Rivet Nut (3)
NAS1330H04K81L Plain Blind Rivet Nut (4)

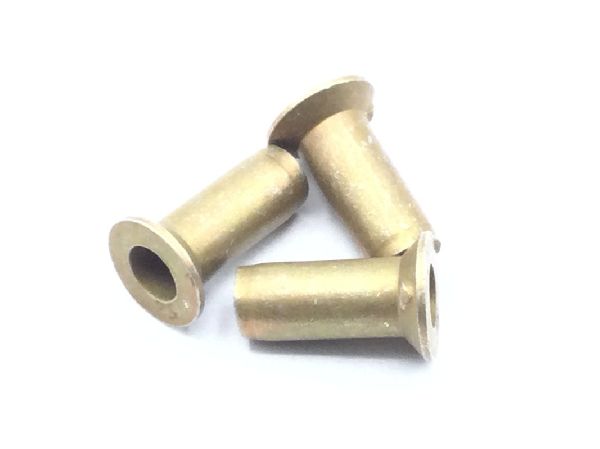

NAS1330H04K81L Plain Blind Rivet Nut
NAS1330H04K81L Plain Blind Rivet Nut (2)

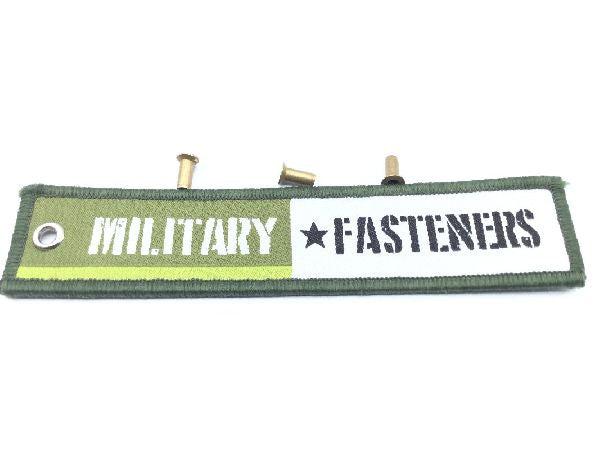

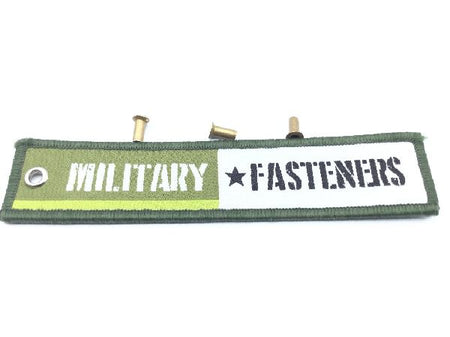

NAS1330H04K81L Plain Blind Rivet Nut (3)

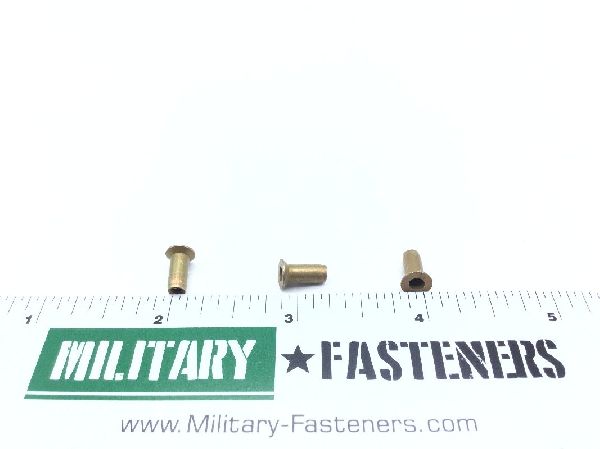

NAS1330H04K81L Plain Blind Rivet Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1330H04K81L Plain Blind Rivet Nut

NSN
5310-00-625-8298
Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk reverse keyed
Material
Steel comp 4037
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3b
Thread Series
Unc (coarse thread)
Thread Size
4.000 inches
Err Default
+0.050 to 0.081 inches
Head Countersink Angle
Between 99.00 degrees and 101.00 degrees
Head Height
0.051 inches
Key Length
0.051 inches
Locking Feature
Prevailing torque all metal design
Material Specification
Astm a547 assn standard single material response
Nut Diameter
Between 0.151 inches and 0.155 inches
Nut Length
Between 0.355 inches and 0.385 inches
Nut Style
Blind rivet w/smooth round shank
Shank End Type
Open
Specification Data
80205-nas1330 professional/industrial association standard
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
40
Head Diameter
0.263 inches
