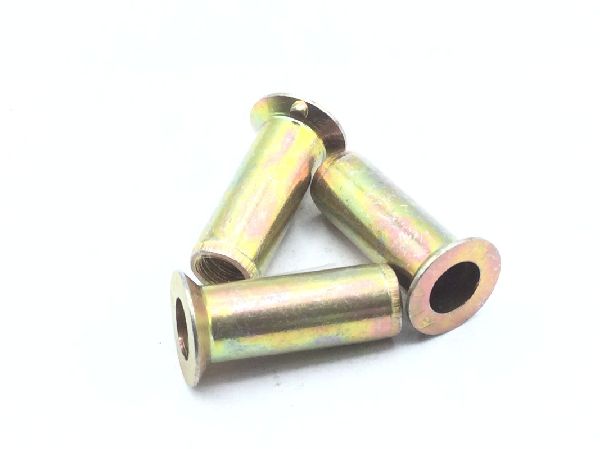

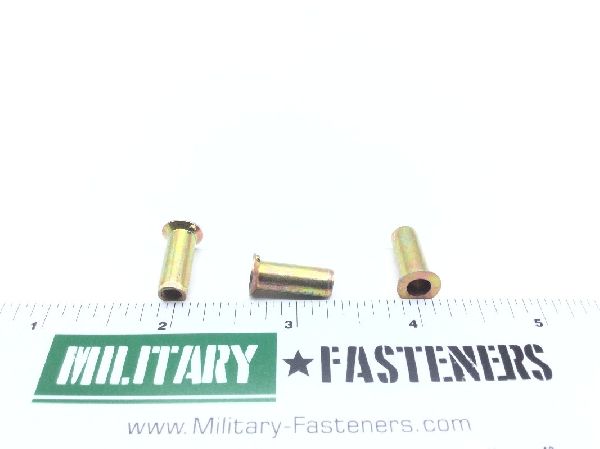

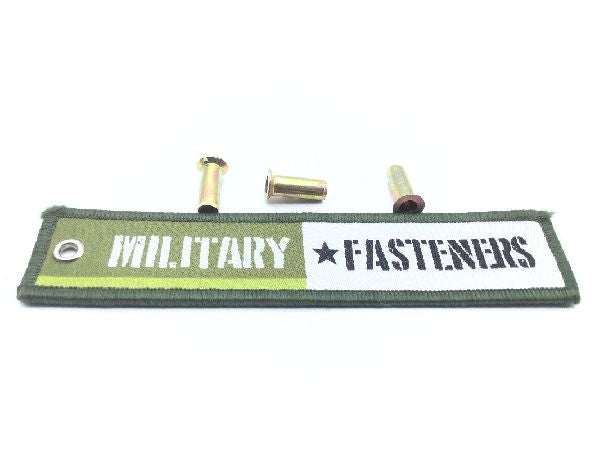

NAS1330H3K216L Plain Blind Rivet Nut
NAS1330H3K216L Plain Blind Rivet Nut (2)
NAS1330H3K216L Plain Blind Rivet Nut (3)
NAS1330H3K216L Plain Blind Rivet Nut (4)
NAS1330H3K216L Plain Blind Rivet Nut
NAS1330H3K216L Plain Blind Rivet Nut (2)
NAS1330H3K216L Plain Blind Rivet Nut (3)
NAS1330H3K216L Plain Blind Rivet Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1330H3K216L Plain Blind Rivet Nut

Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $2.15
Units per Pack 20
Price per Pack $43.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $43.00
Add item to quote
Head Style
Flat countersunk reverse keyed
Material
Steel comp 4037
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.190 inches
Err Default
+0.166 to 0.216 inches
Head Countersink Angle
100.00 degrees
Head Height
0.065 inches
Key Length
0.065 inches
Locking Feature
Prevailing torque all metal design
Material Specification
Qq-w-405 federal specification single material response
Nut Diameter
Between 0.246 inches and 0.250 inches
Nut Length
Between 0.672 inches and 0.702 inches
Nut Style
Blind rivet w/smooth round shank
Shank End Type
Open
Specification Data
80205-nas1330 professional/industrial association standard
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Head Diameter
0.391 inches
