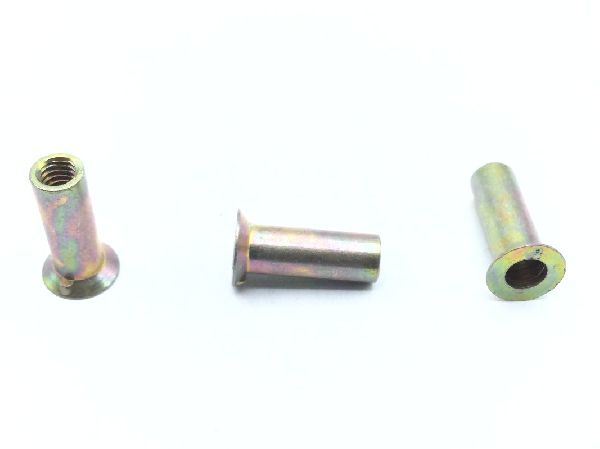

NAS1330S08K241 Plain Blind Rivet Nut (2)

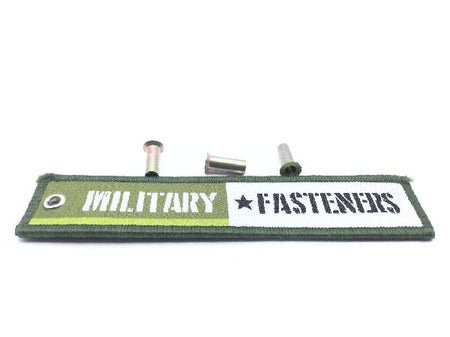

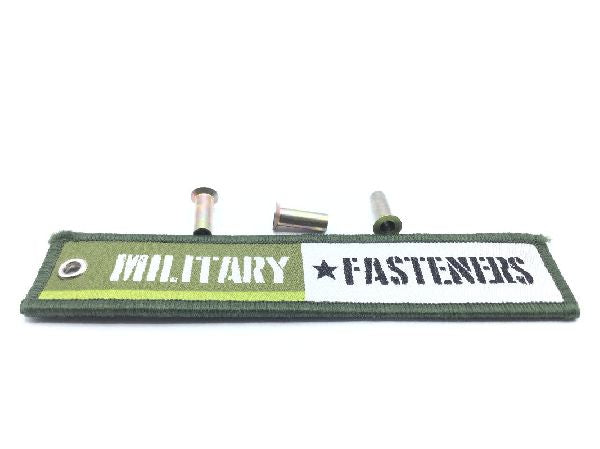

NAS1330S08K241 Plain Blind Rivet Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

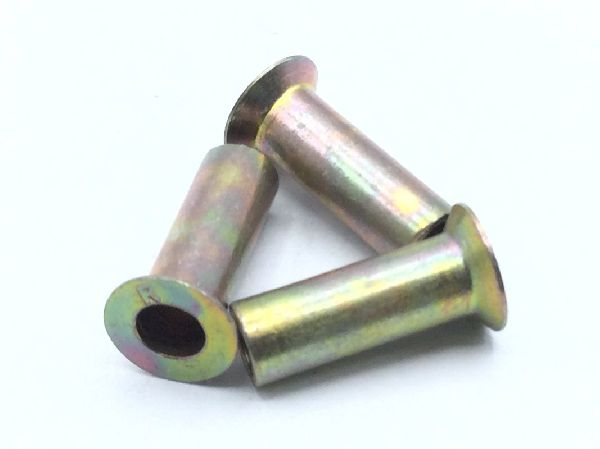

NAS1330S08K241 Plain Blind Rivet Nut

Product Series: NAS
ECCN: 9A991
Schedule: 7318.16.0085

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Steel comp 1008 or steel comp 1010 or steel comp 1108 or steel comp 1110 or steel comp 1215

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Err Default: +0.201 to 0.241 inches
Head Countersink Angle: Between 99 degrees and 101 degrees
Head Height: 0.063 inches
Key Length: 0.063 inches
Material Specification: Astm a549 assn standard 1st material response or astm a576 assn standard 2nd material response or astm a108 assn standard 3rd material response
Nut Diameter: Between 0.217 inches and 0.221 inches
Nut Length: Between 0.610 inches and 0.640 inches
Nut Style: Blind rivet with smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.355 inches
