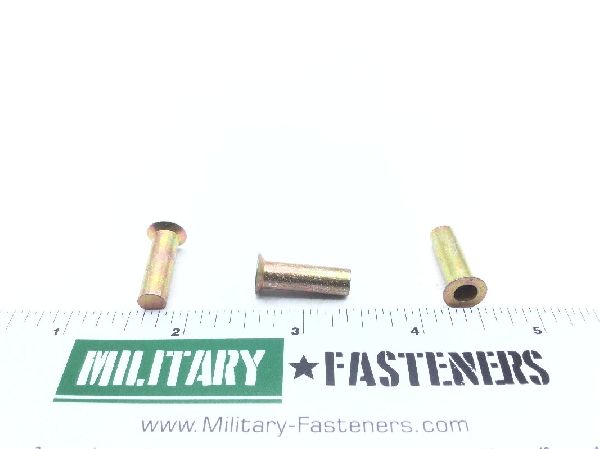

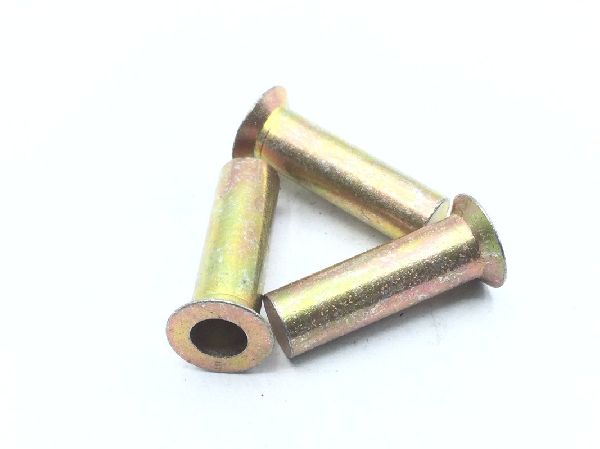

NAS1330S3B116 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 1108

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Err Default: +0.065 to 0.116 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Material Specification: Fed standard 66 federal standard single material response
Nut Diameter: Between 0.246 inches and 0.250 inches
Nut Length: Between 0.813 inches and 0.843 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Closed
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
