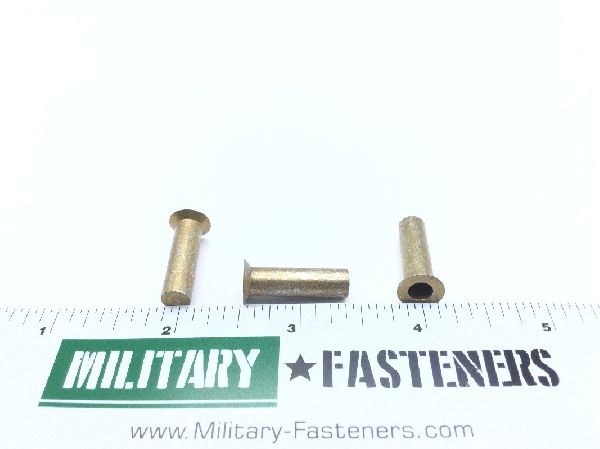

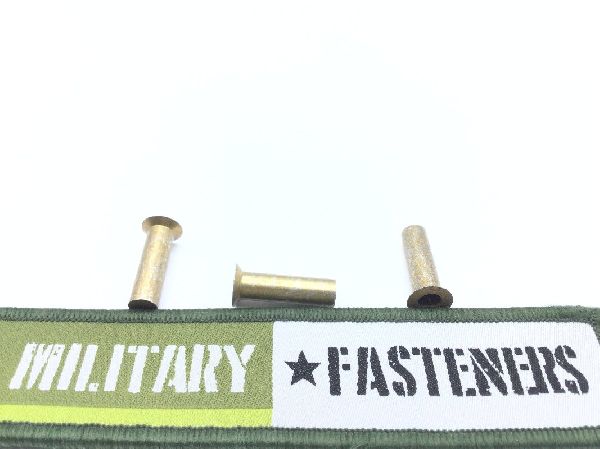

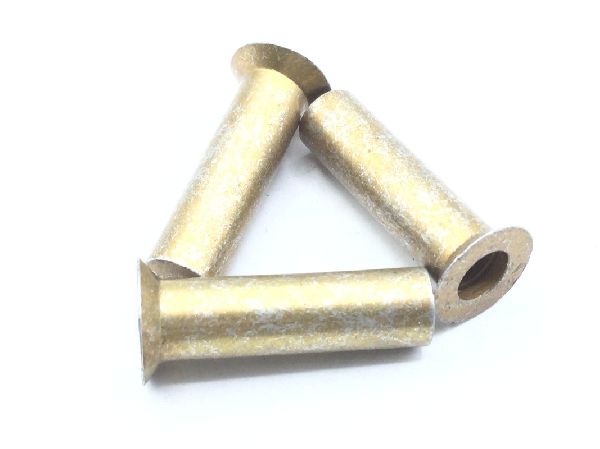

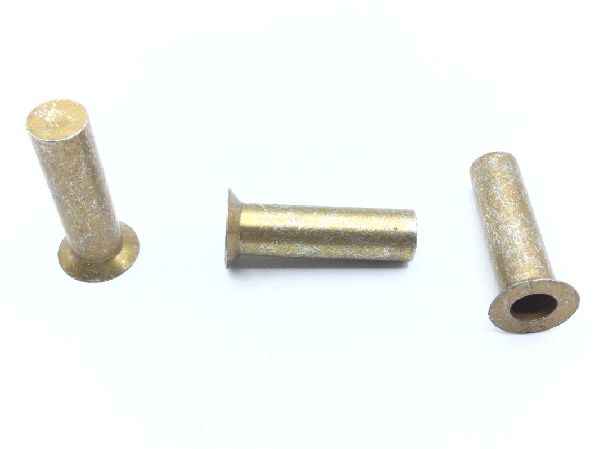

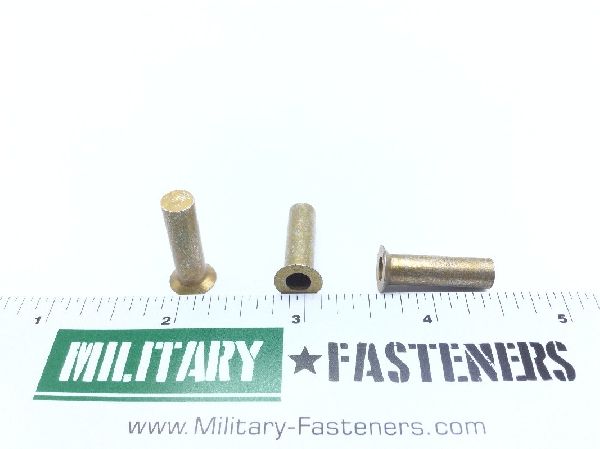

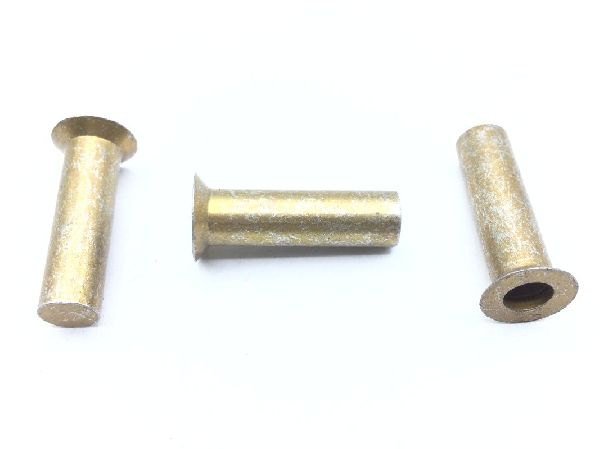

NAS1330S3B166 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 1108 or steel comp 1110

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Err Default: +0.116 to 0.166 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Material Specification: Qq-w-405 federal specification all material responses
Nut Diameter: Between 0.246 inches and 0.250 inches
Nut Length: Between 0.860 inches and 0.890 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Closed
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
