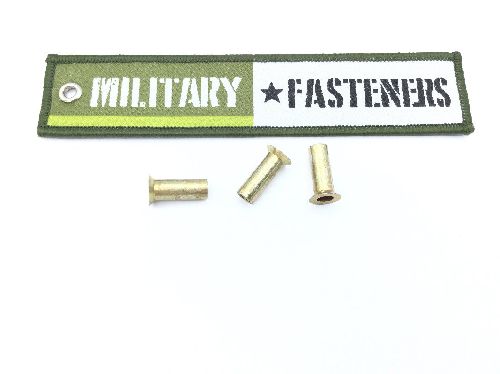

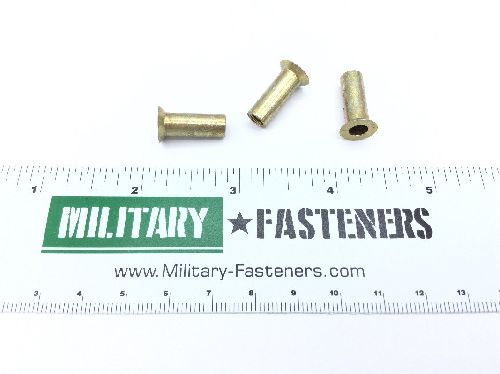

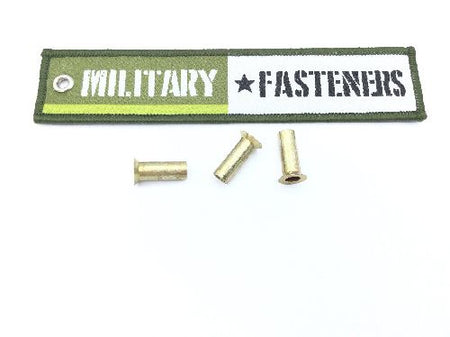

NAS1330S3K216 Plain Blind Rivet Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.40

Units per Pack 100

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Steel comp 1108

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Err Default: +0.166 to 0.216 inches
Head Countersink Angle: 100.00 degrees
Head Height: 0.065 inches
Key Length: 0.065 inches
Material Specification: 66 federal standard single material response
Nut Diameter: Between 0.246 inches and 0.250 inches
Nut Length: 0.687 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 80205-nas1330 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
