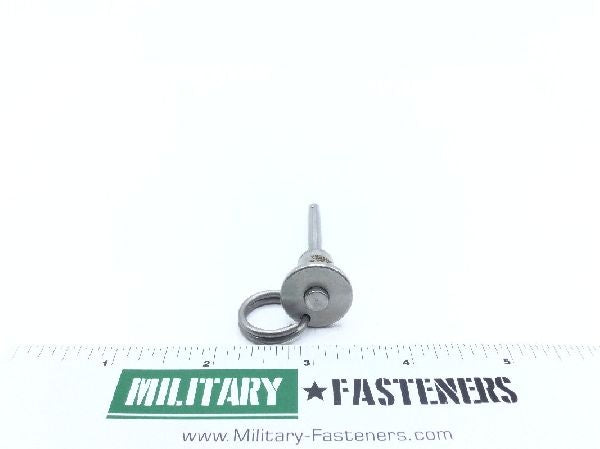

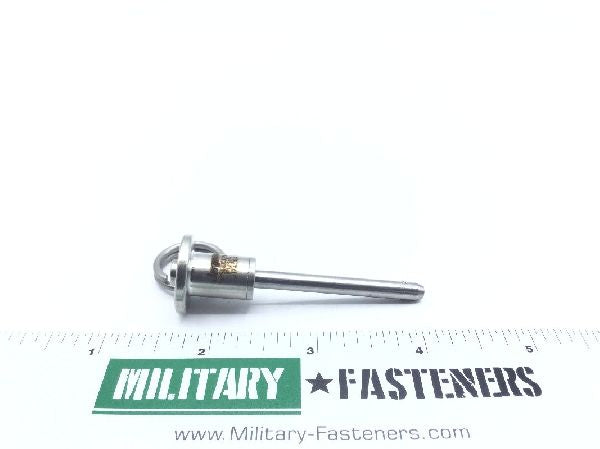

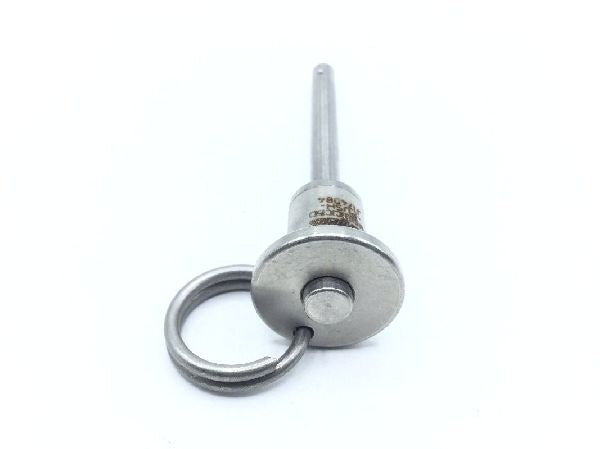

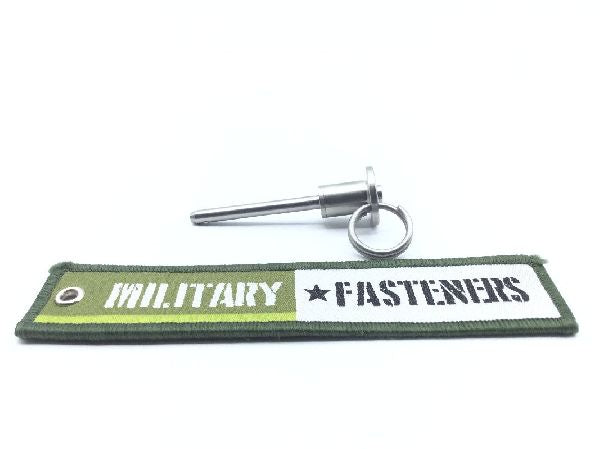

NAS1333C3C15D Quick Release Pin

Product Series: NAS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $74.00

Units per Pack 1

Price per Pack $74.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $74.00

Add item to quote

Material

Steel comp 630 spindle or steel comp 632 spindle

Surface Treatment

Qq-p-35 federal specification single treatment response

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: 0.380 inches
Grip Length: Between 1.500 inches and 1.520 inches
Material Specification: Mil-s-7720 military specification single material response head or qq-s-763 military specification 1st material response head
Pin Attachment Type: Ring
Shank Diameter: Between 0.1870 inches and 0.1895 inches
Shear Strength: 5150 double pounds per square inch
Shoulder To Head End Distance: 1.550 inches
Specification Data: 80205-nas1333 professional/industrial association standard
Style Designator: Ring handle
Head Diameter: 1.200 inches
