NAS1351-3-20P Socket Head Cap Screw
NAS1351-3-20P Socket Head Cap Screw (2)
NAS1351-3-20P Socket Head Cap Screw (3)
NAS1351-3-20P Socket Head Cap Screw (4)
NAS1351-3-20P Socket Head Cap Screw (5)
NAS1351-3-20P Socket Head Cap Screw (6)

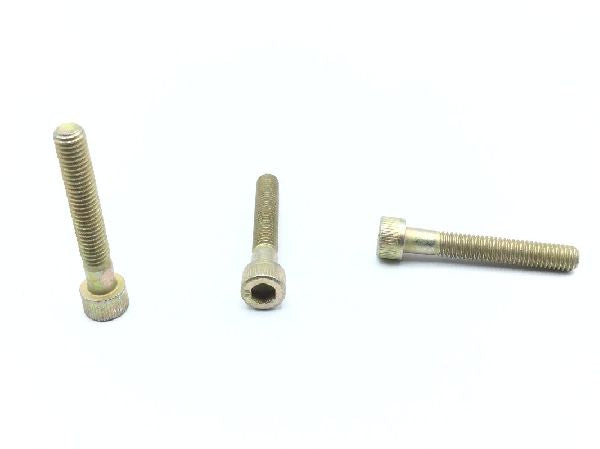

NAS1351-3-20P Socket Head Cap Screw

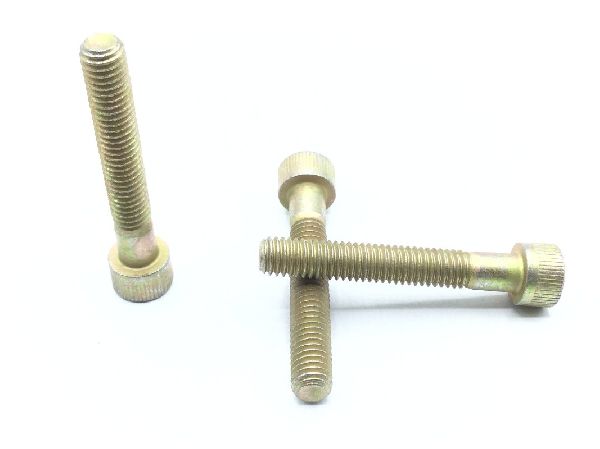

NAS1351-3-20P Socket Head Cap Screw (2)
NAS1351-3-20P Socket Head Cap Screw (3)

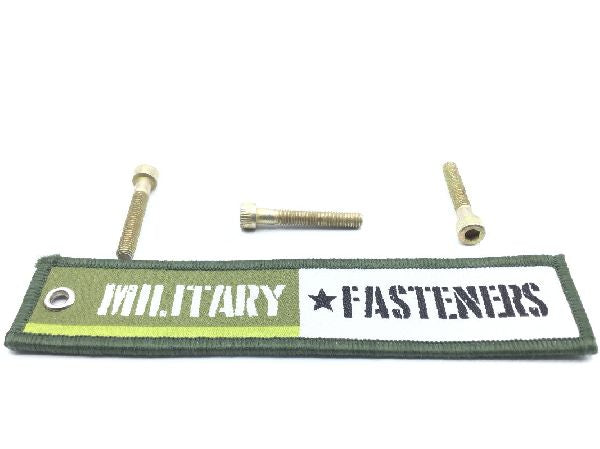

NAS1351-3-20P Socket Head Cap Screw (4)

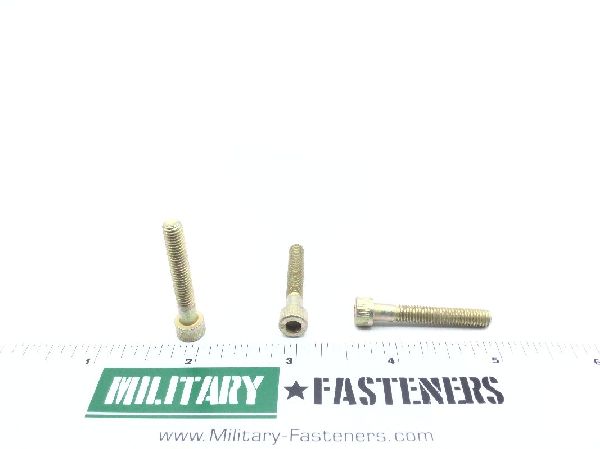

NAS1351-3-20P Socket Head Cap Screw (5)

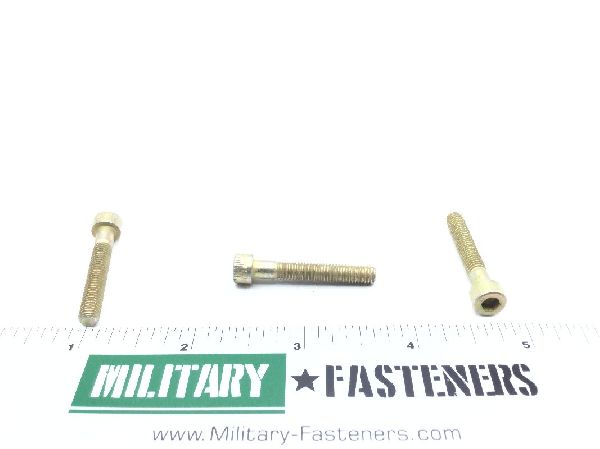

NAS1351-3-20P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351-3-20P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $3.68
Units per Pack 10
Price per Pack $36.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $36.80
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
type 2 cl 3 federal specification all treatment responses qq-p-416
Thread Class
3a
Fastener Length
Between 1.210 inches and 1.250 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.185 inches and 0.190 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Specification Data
80205-nas1351 professional/industrial association standard
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.875 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unrf
Width Across Flats
Between 0.156 inches and 0.159 inches
Head Diameter
Between 0.303 inches and 0.312 inches
