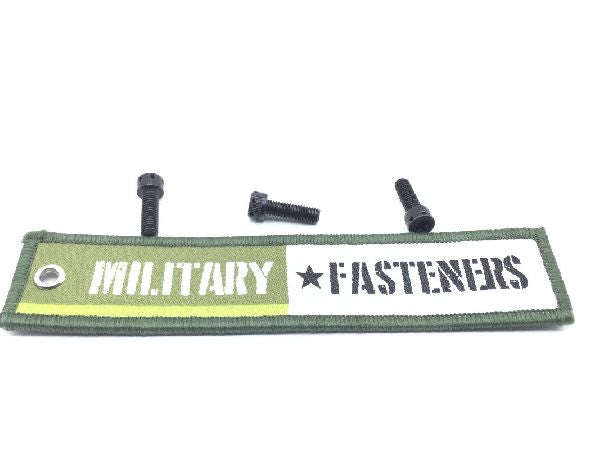

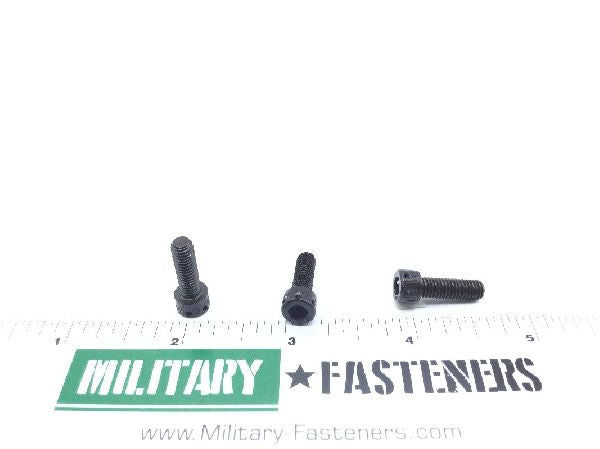

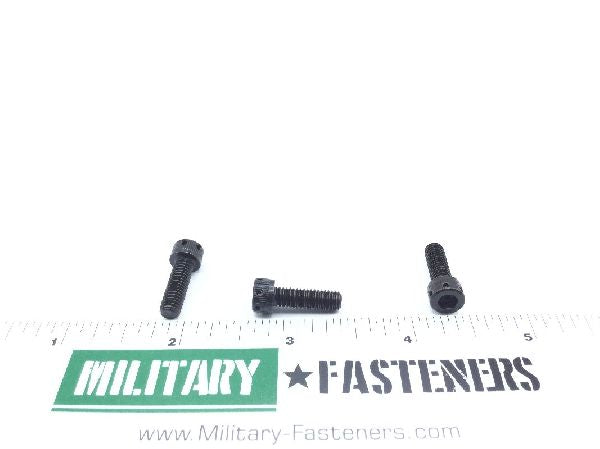

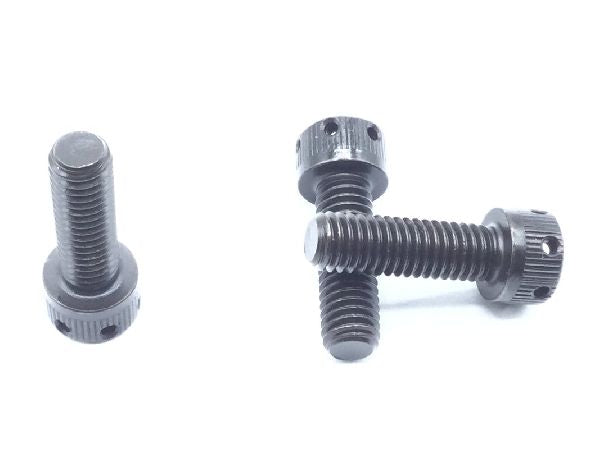

NAS1351-3H10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Thread Class

Fastener Length: Between 0.595 millimeters and 0.625 millimeters
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round
Hole Quantity: 6
Hole Type: Drilled Head
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.625 millimeters
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
Hole Diameter: 0.047 inches
