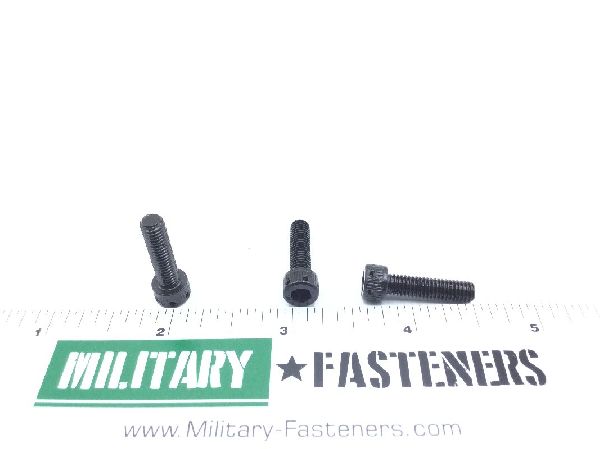

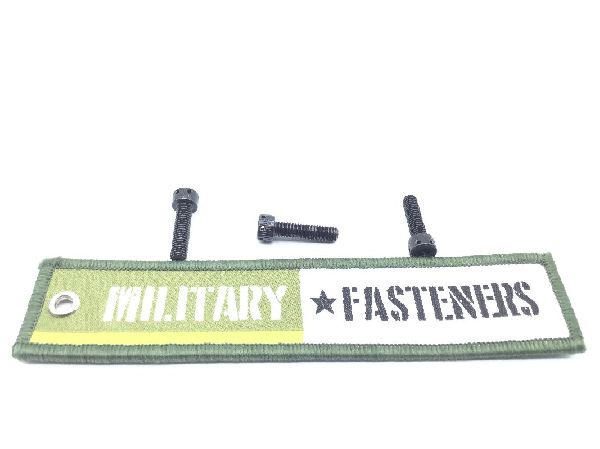

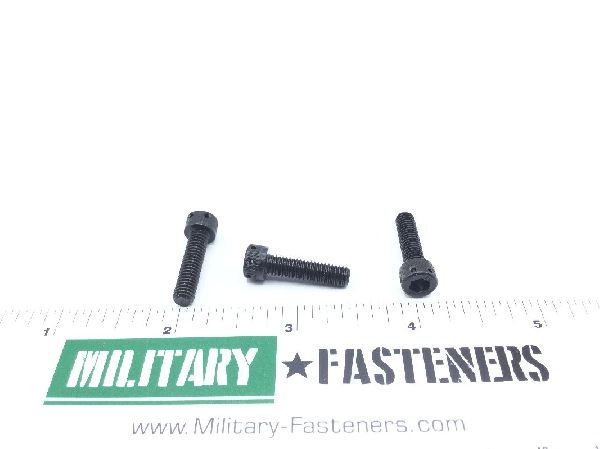

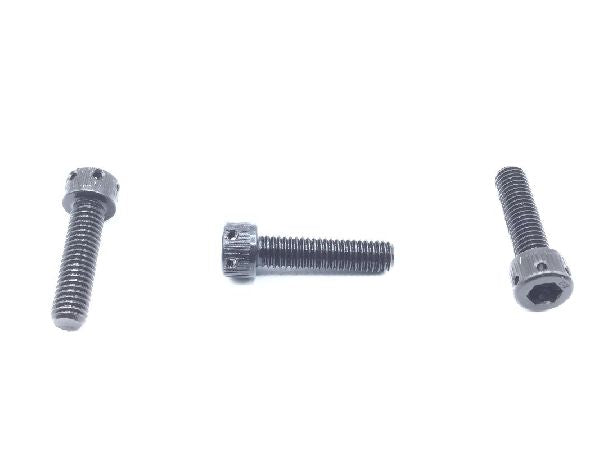

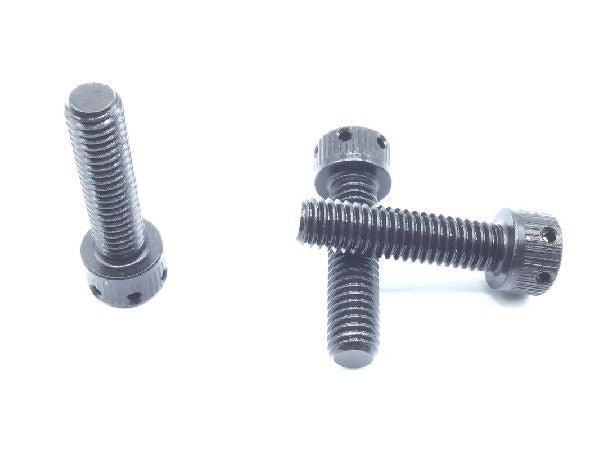

NAS1351-3H12 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $9.18

Units per Pack 10

Price per Pack $91.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $91.80

Add item to quote

Head Style

Flat chamfer

Material

Steel

Thread Class

Fastener Length: Between 0.740 inches and 0.770 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round
Hole Quantity: 2
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.770 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.156 inches and 0.158 inches
Head Diameter: Between 0.306 inches and 0.313 inches
Hole Diameter: 0.037 inches
