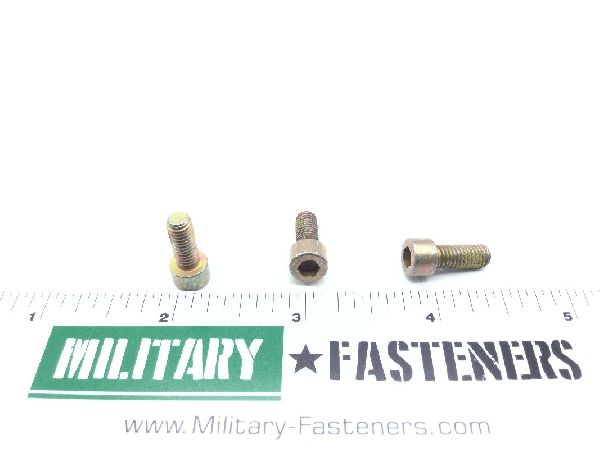

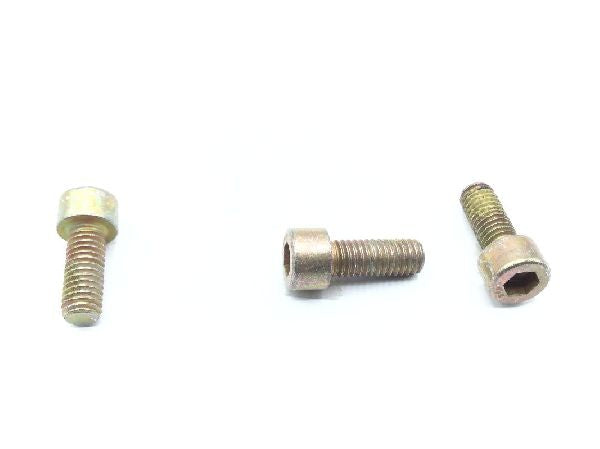

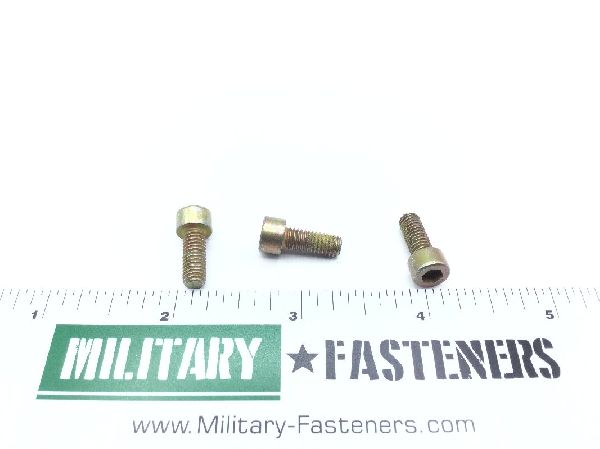

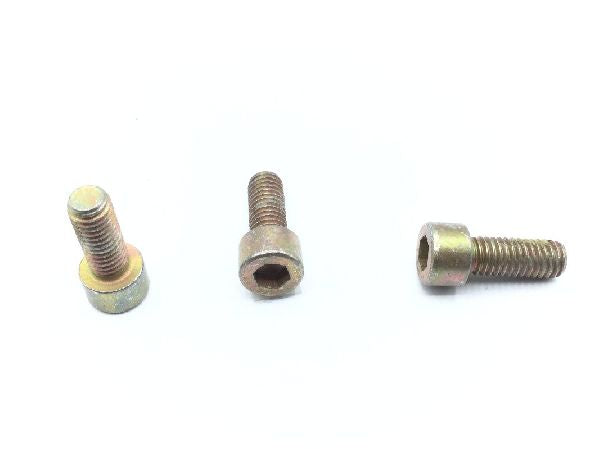

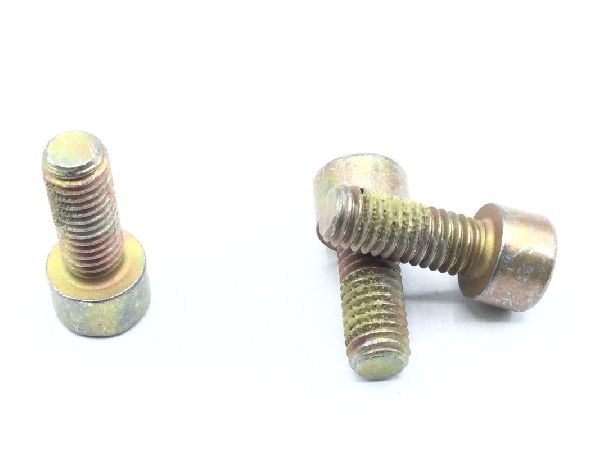

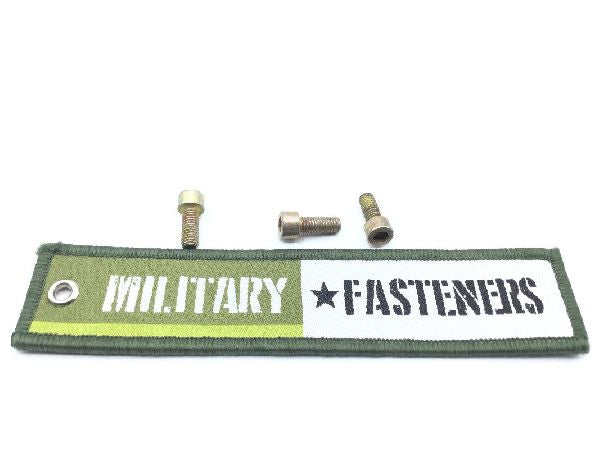

NAS1351-3LB8P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.59

Units per Pack 25

Price per Pack $39.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.75

Add item to quote

Head Style

Flat chamfer

Material

Steel fastener

Surface Treatment

Type 2 class 2 federal specification single treatment response fastener qq-p-416

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Locking Feature: Strip threads
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrf
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
