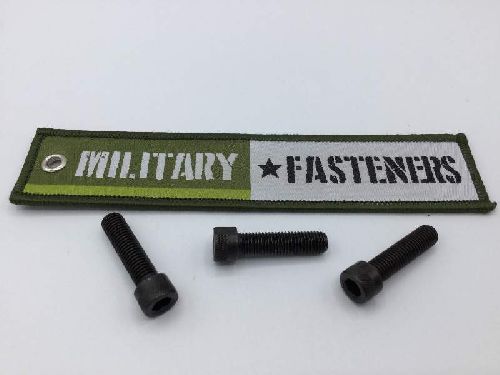

NAS1351-4-16 Socket Head Cap Screw

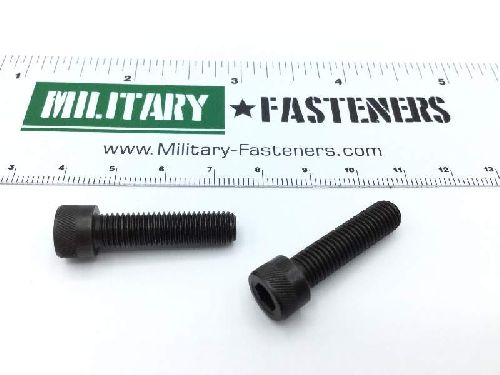

NAS1351-4-16 Socket Head Cap Screw (2)

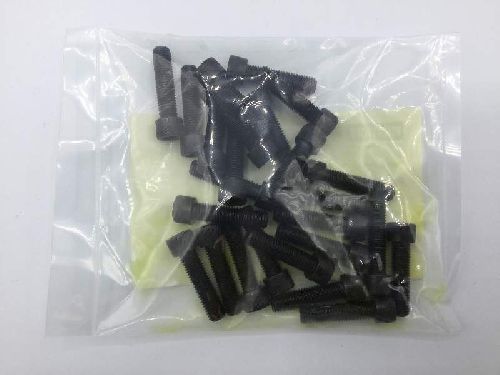

NAS1351-4-16 Socket Head Cap Screw (3)
NAS1351-4-16 Socket Head Cap Screw
NAS1351-4-16 Socket Head Cap Screw (2)
NAS1351-4-16 Socket Head Cap Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351-4-16 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $1.52
Units per Pack 25
Price per Pack $38.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $38.00
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Mil-c-13924 cl1 military specification single treatment response
Thread Class
3a
Color
Black
Fastener Length
Between 0.970 inches and 1.000 inches
Hardness Rating
38.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.244 inches and 0.250 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Specification Data
80205-nas1351 professional/industrial association standard
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.913 inches and 1.000 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unrf
Width Across Flats
Between 0.188 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
