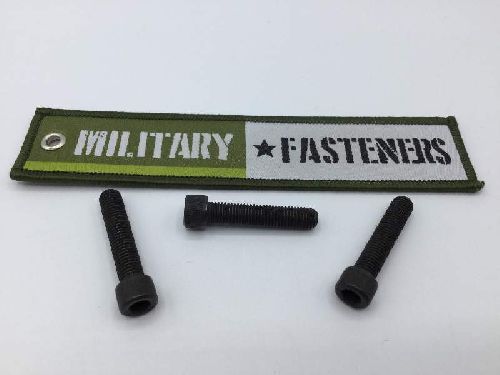

NAS1351-4-20 Socket Head Cap Screw

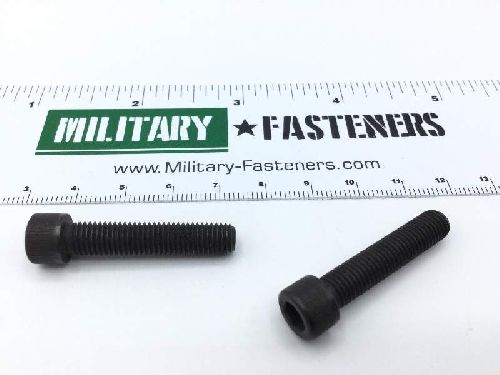

NAS1351-4-20 Socket Head Cap Screw (2)

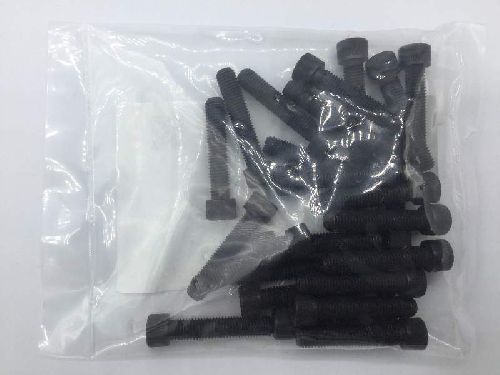

NAS1351-4-20 Socket Head Cap Screw (3)
NAS1351-4-20 Socket Head Cap Screw
NAS1351-4-20 Socket Head Cap Screw (2)
NAS1351-4-20 Socket Head Cap Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351-4-20 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $2.26
Units per Pack 20
Price per Pack $45.20
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $45.20
Add item to quote
Head Style
Flat chamfer
Material
Steel
Thread Class
3a
Fastener Length
Between 1.234 inches and 1.281 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.244 inches and 0.250 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
1.000 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.188 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
