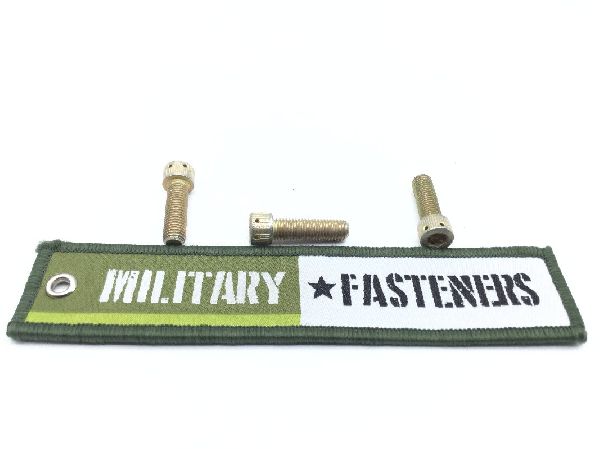

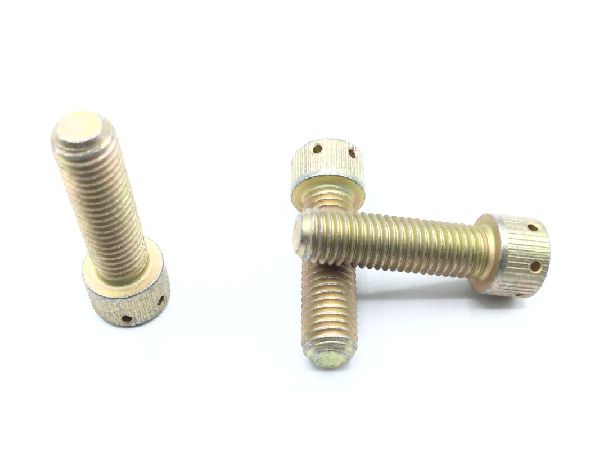

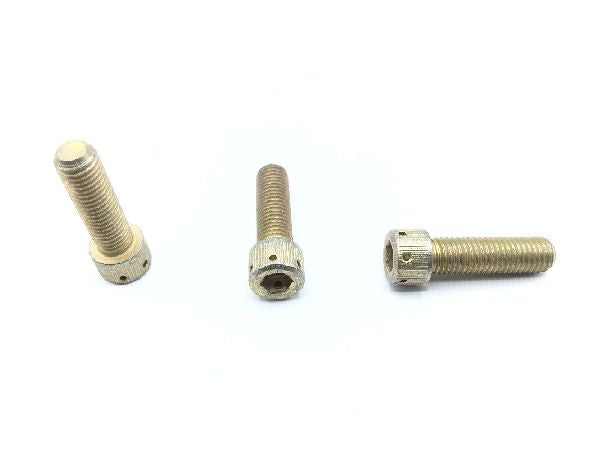

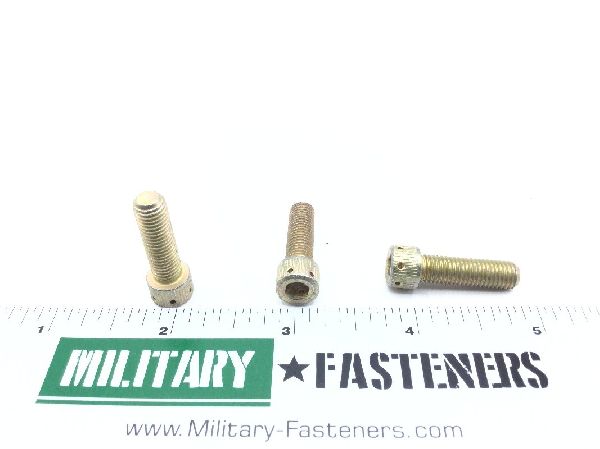

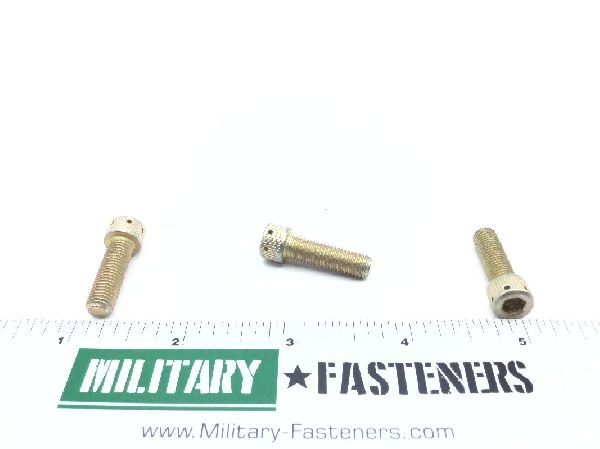

NAS1351-4H14P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-416-p type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.845 inches and 0.875 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.244 inches and 0.250 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.774 inches and 0.875 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unrf
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
