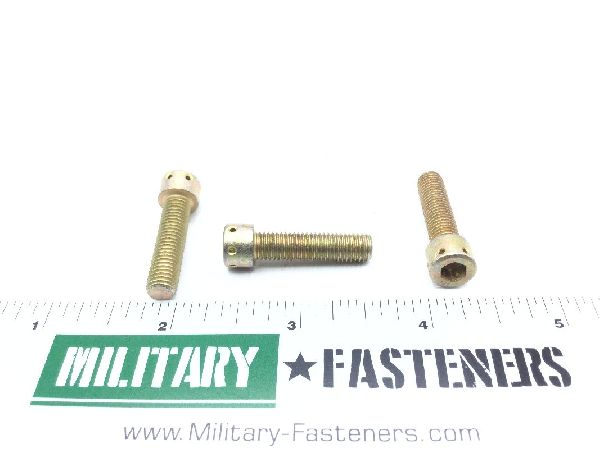

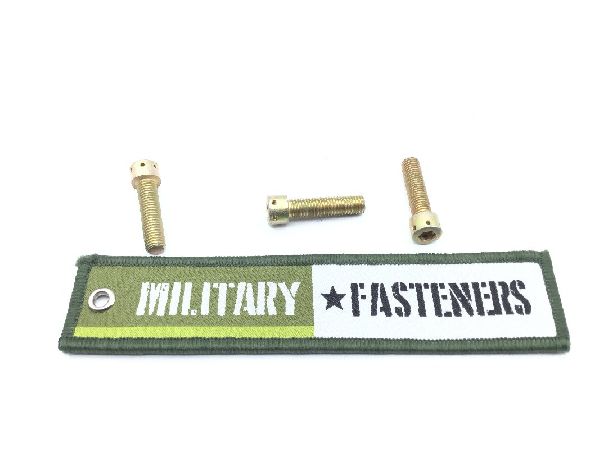

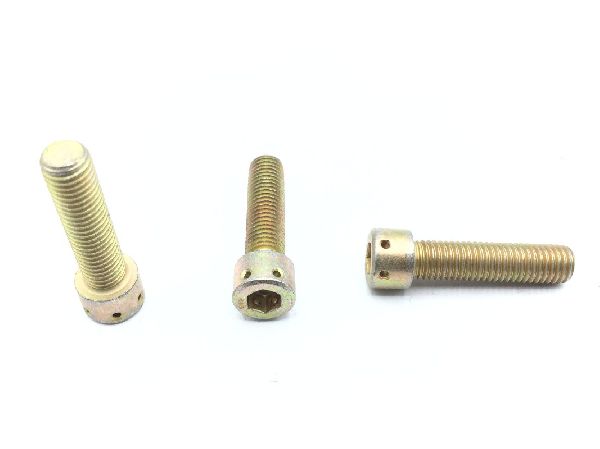

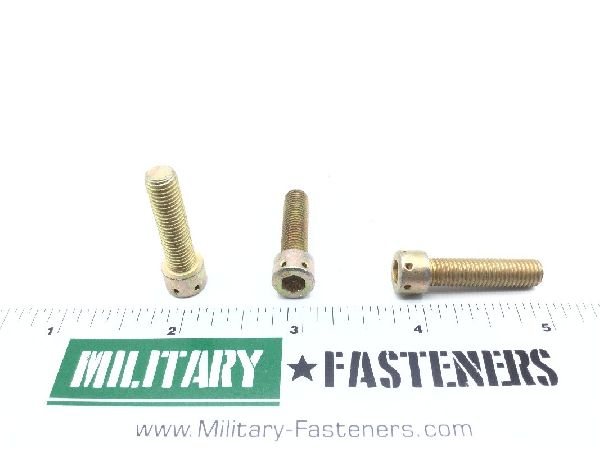

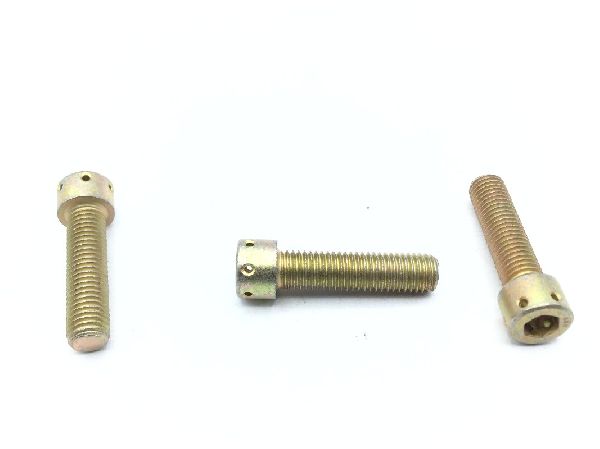

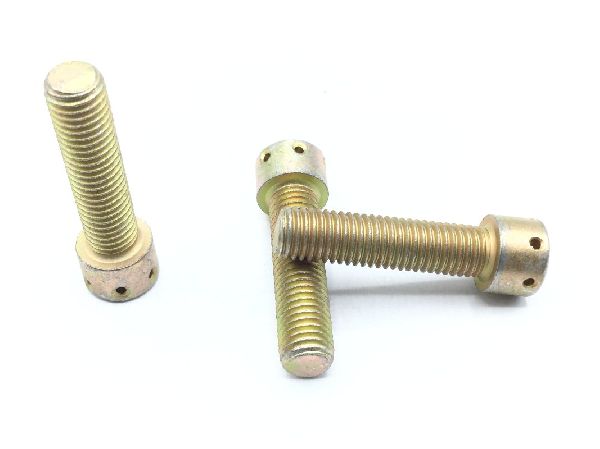

NAS1351-4H16P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.80

Units per Pack 10

Price per Pack $58.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.00

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 ams-qq-p-416

Thread Class

Fastener Length: 1.000 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.244 inches and 0.250 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.187 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
Hole Diameter: 0.062 inches
