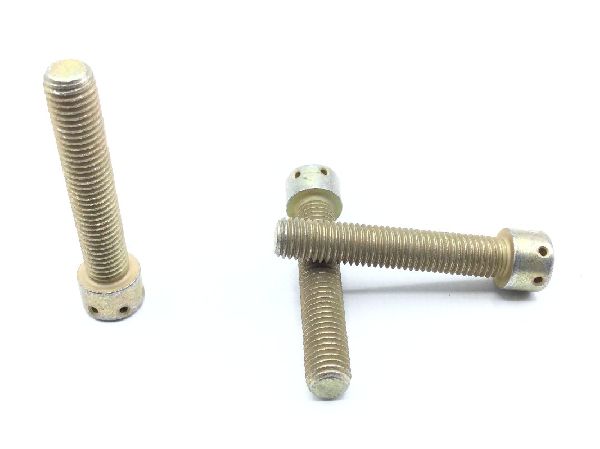

NAS1351-4H22P Socket Head Cap Screw (2)

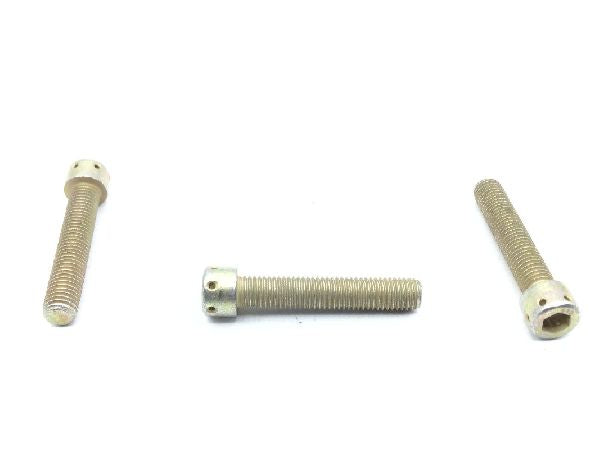

NAS1351-4H22P Socket Head Cap Screw (3)

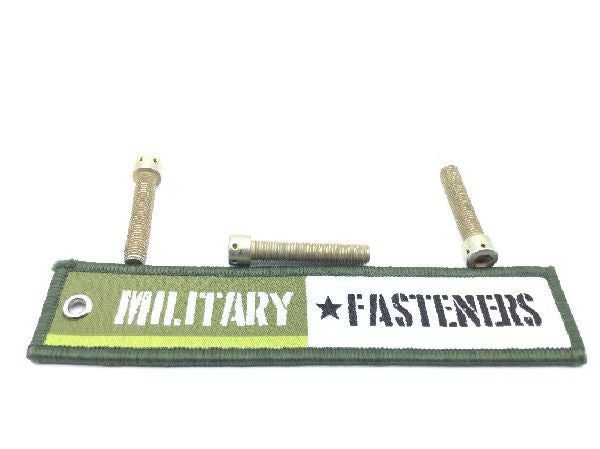

NAS1351-4H22P Socket Head Cap Screw (4)

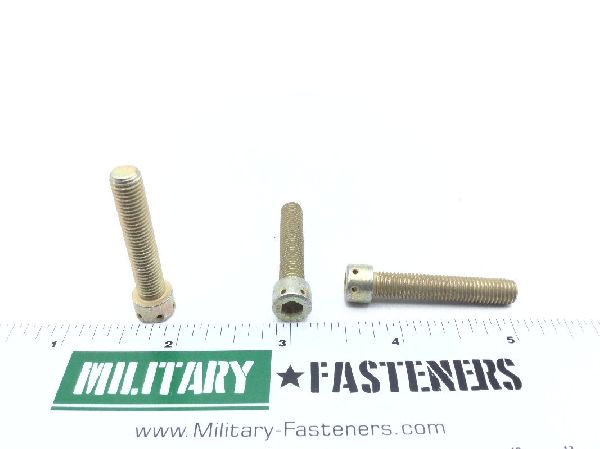

NAS1351-4H22P Socket Head Cap Screw (5)

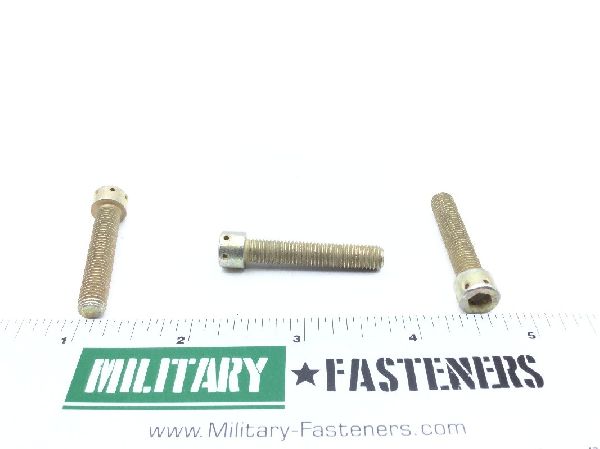

NAS1351-4H22P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351-4H22P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Flat chamfer

Material

Steel

Thread Class

3a

Fastener Length: 1.375 inches
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.187 inches and 0.190 inches
Head Diameter: Between 0.367 inches and 0.375 inches
