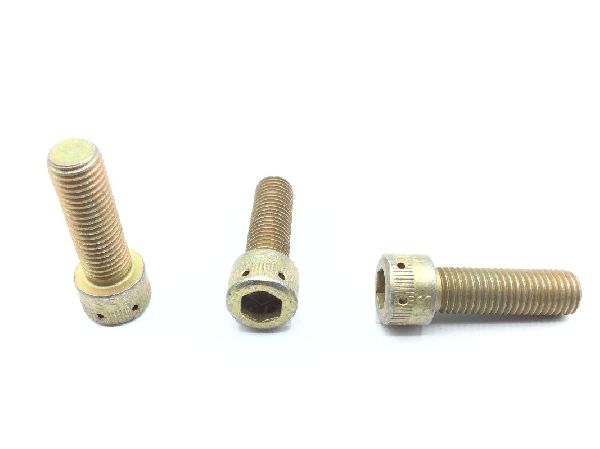

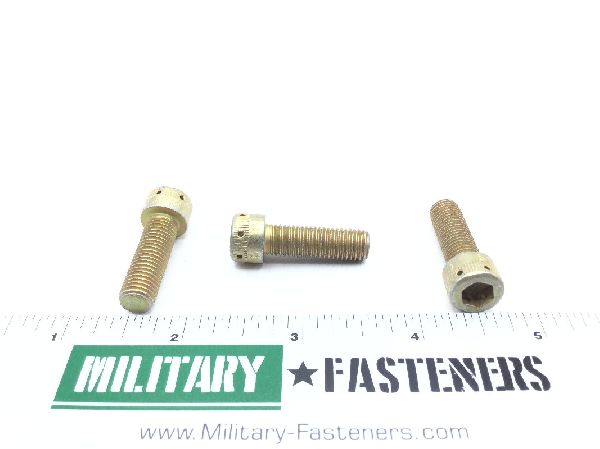

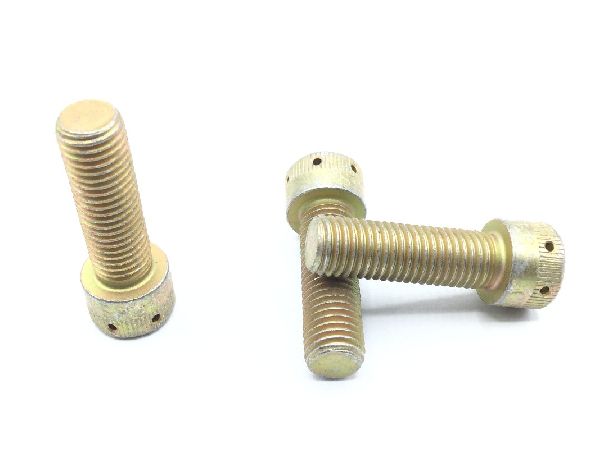

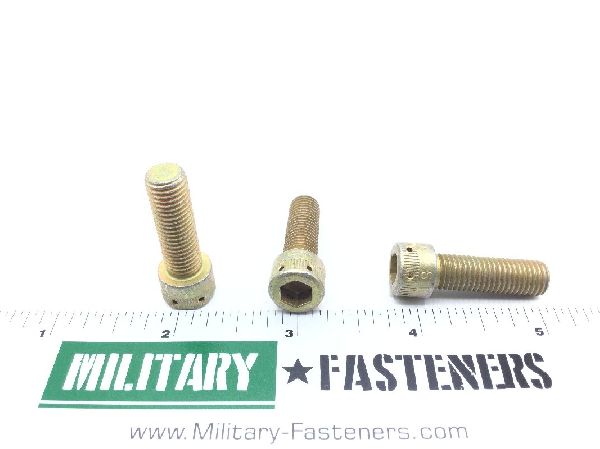

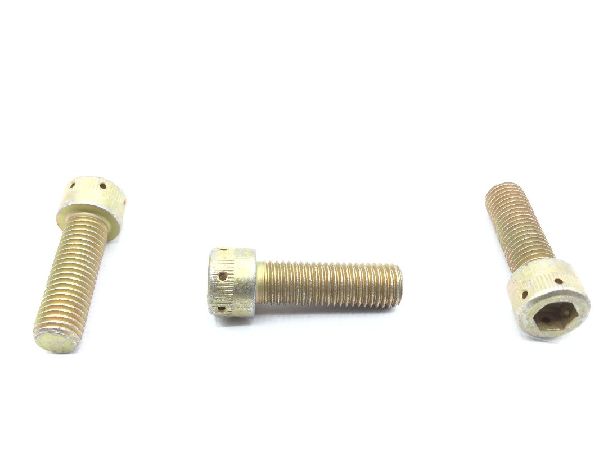

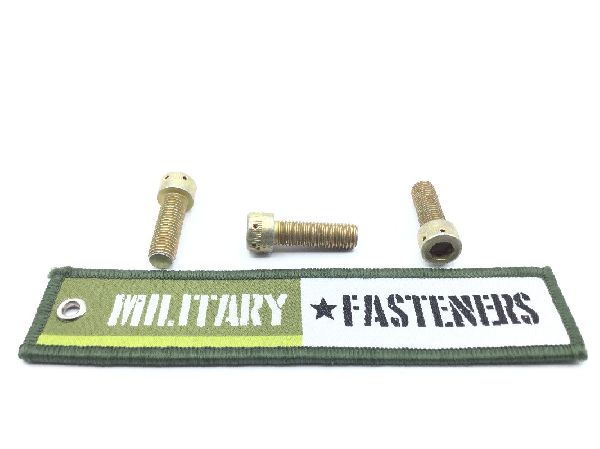

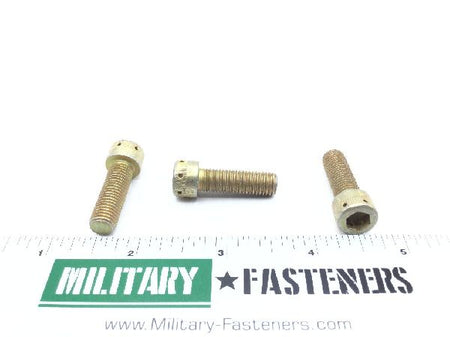

NAS1351-5H16P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $8.24

Units per Pack 10

Price per Pack $82.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $82.40

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 t31 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.970 inches and 1.000 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.306 inches and 0.312 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 1
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.887 inches and 1.000 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrf
Width Across Flats: Between 0.250 inches and 0.253 inches
Head Diameter: Between 0.457 inches and 0.469 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
