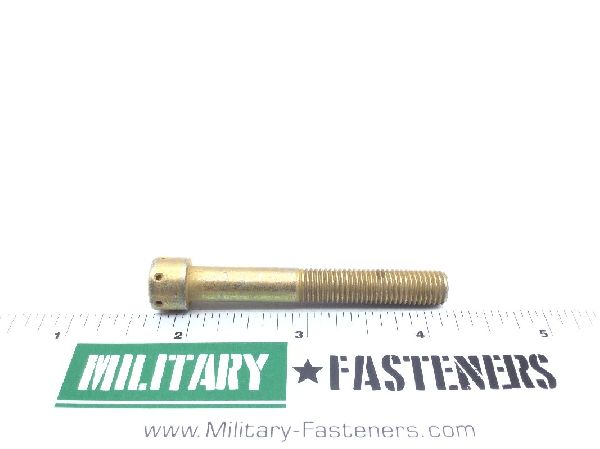

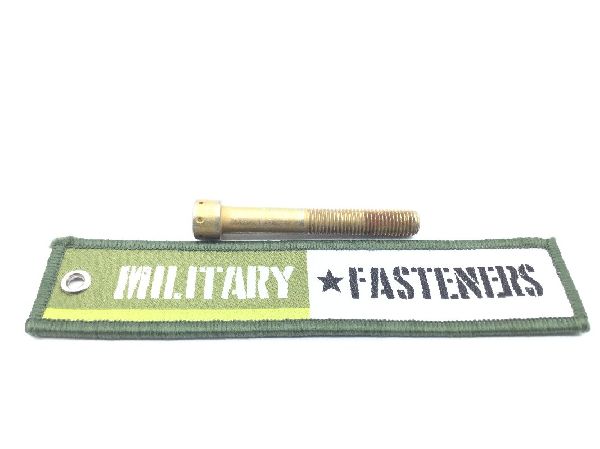

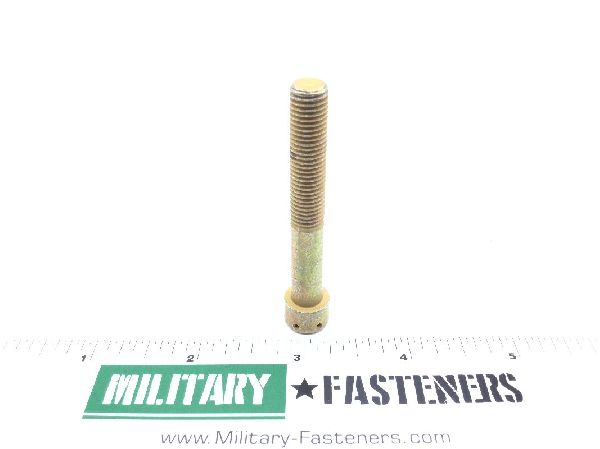

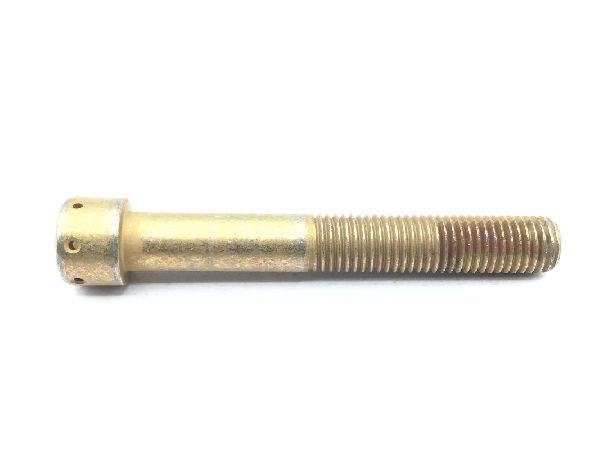

NAS1351-5H36P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $83.09

Units per Pack 1

Price per Pack $83.09

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $83.09

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Class 2 assn standard single treatment response type ii ams-qq-p-416

Thread Class

Color: Black
End Application: Mh-60sc airframe; guide assembly
Fastener Length: 2.250 inches
Fsc Application Data: Unrf
Head Height: Between 0.306 inches and 0.312 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Ff-s-86 federal standard single material response
Minimum Yield Strength: 10400 pounds per square inch
Part Name Assigned By Controlling Agency: Unrf-3a alloy steel plain drilled head
Thread Diameter: 0.313 inches
Thread Direction: Right-hand
Thread Length: 1.125 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrf
Width Across Flats: 0.250 inches
Head Diameter: Between 0.457 inches and 0.469 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
