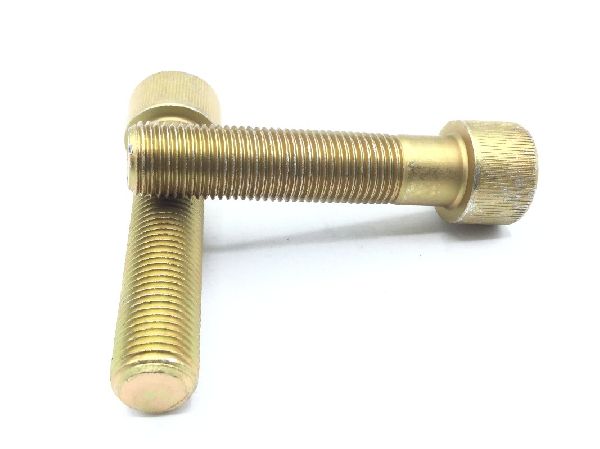

NAS1351-8-36P Socket Head Cap Screw

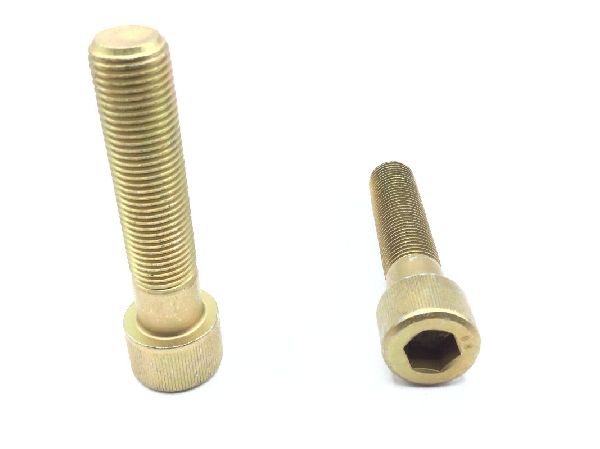

NAS1351-8-36P Socket Head Cap Screw (2)

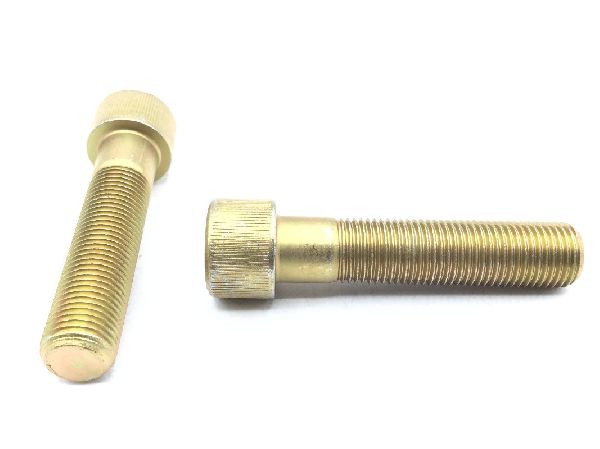

NAS1351-8-36P Socket Head Cap Screw (3)

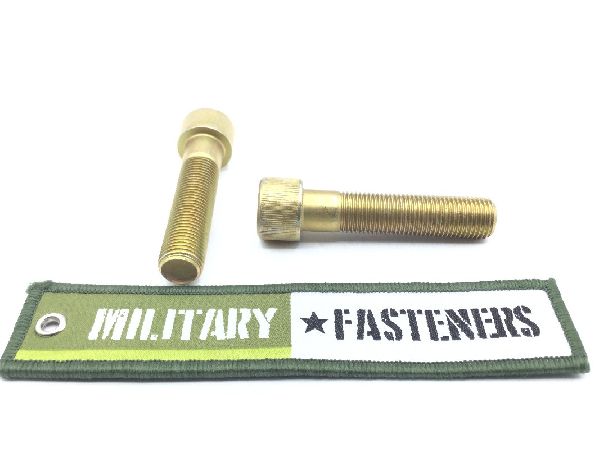

NAS1351-8-36P Socket Head Cap Screw (4)

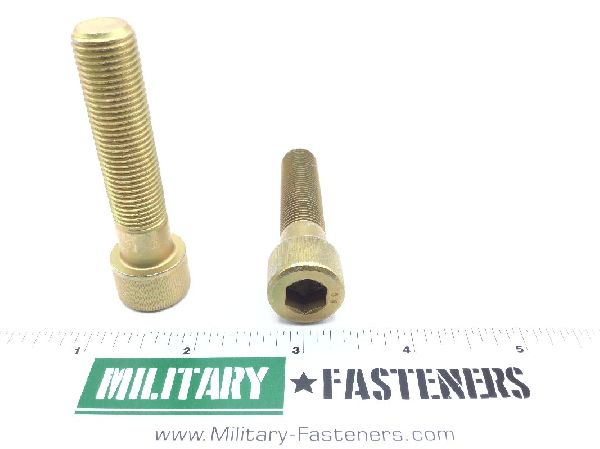

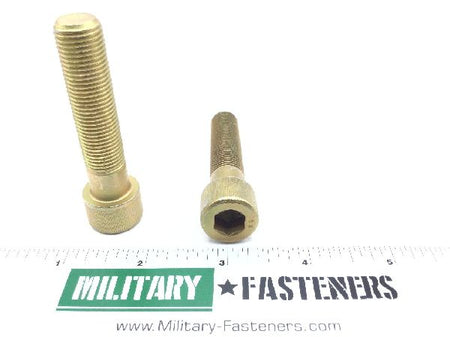

NAS1351-8-36P Socket Head Cap Screw (5)

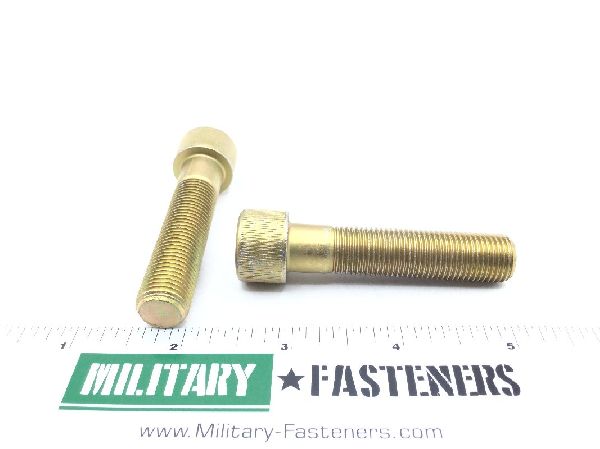

NAS1351-8-36P Socket Head Cap Screw (6)
NAS1351-8-36P Socket Head Cap Screw
NAS1351-8-36P Socket Head Cap Screw (2)
NAS1351-8-36P Socket Head Cap Screw (3)
NAS1351-8-36P Socket Head Cap Screw (4)
NAS1351-8-36P Socket Head Cap Screw (5)
NAS1351-8-36P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351-8-36P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 2 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
2.250 inches
Hardness Rating
38.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.492 inches and 0.500 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
170000 pounds per square inch
Minimum Yield Strength
150000 pounds per square inch
Specification Data
80205-nas1351 professional/industrial association standard
Thread Diameter
0.500 inches
Thread Direction
Right-hand
Thread Length
1.500 inches
Thread Qty Per Inch (tpi)
20
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Across Flats
Between 0.375 inches and 0.379 inches
Head Diameter
Between 0.735 inches and 0.750 inches
