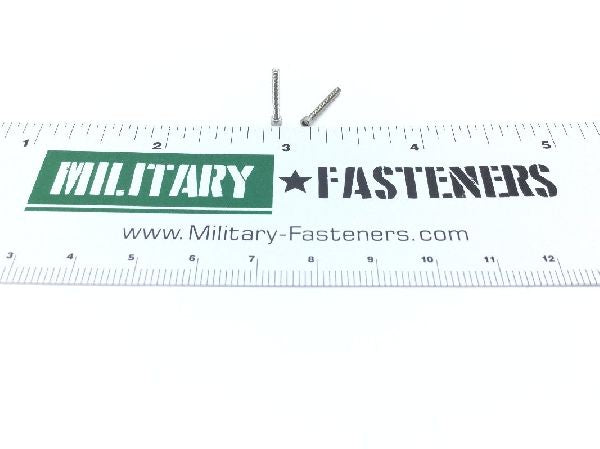

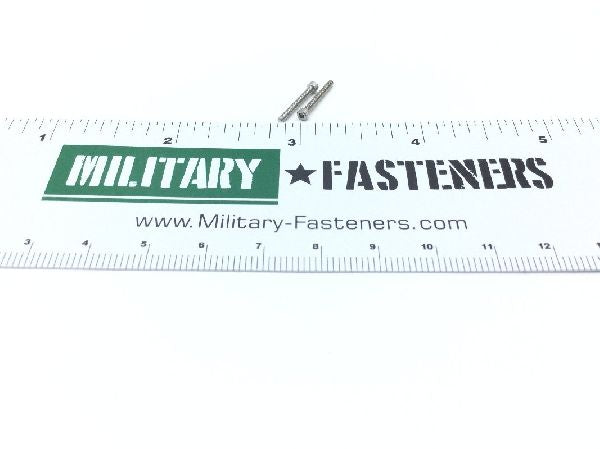

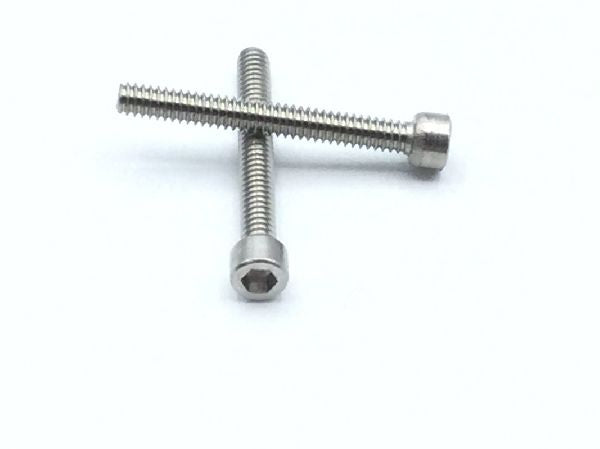

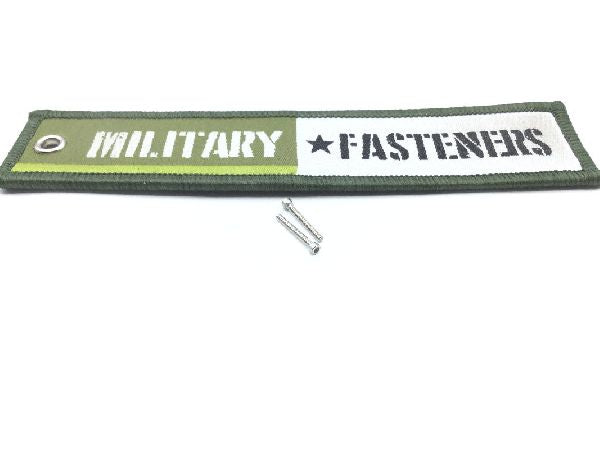

NAS1351C00-8 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Hardness Rating: 39.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.057 inches and 0.060 inches
Internal Drive Style: Hexagon
Material Specification: Astm a493 assn standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.445 inches and 0.500 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unrf
Width Across Flats: Between 0.0505 inches and 0.0510 inches
Head Diameter: Between 0.091 inches and 0.096 inches
