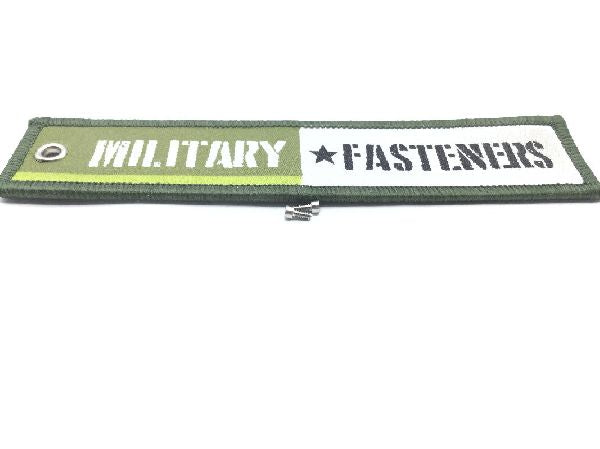

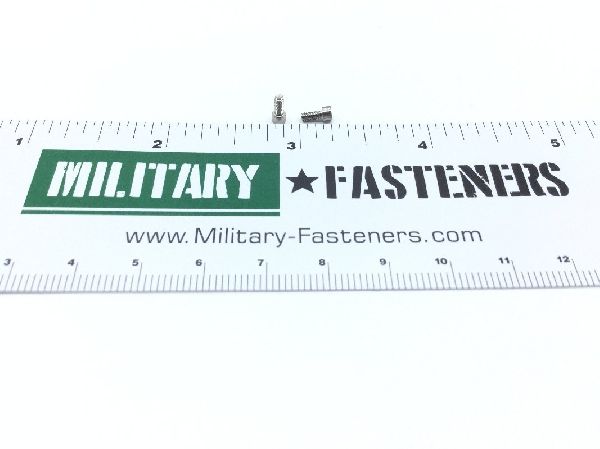

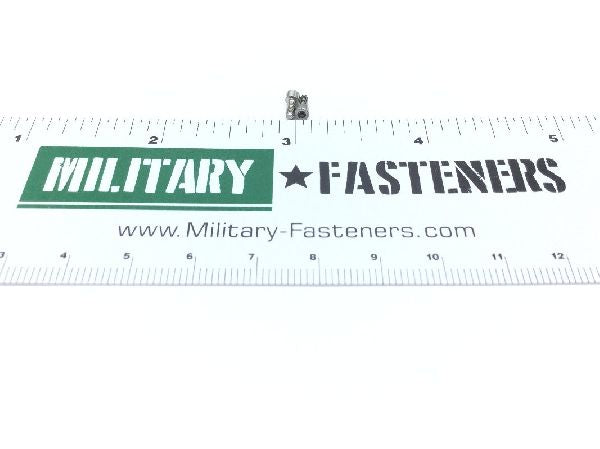

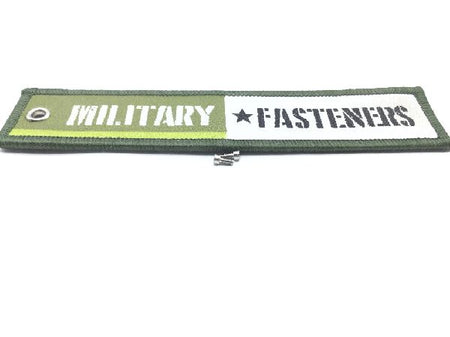

NAS1351C01-3 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.158 inches and 0.188 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.070 inches and 0.073 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.073 inches
Thread Direction: Right-hand
Thread Length: Between 0.130 inches and 0.188 inches
Thread Qty Per Inch (tpi): 72
Thread Series Designator: Unrf
Width Across Flats: Between 0.063 inches and 0.064 inches
Head Diameter: Between 0.112 inches and 0.118 inches
