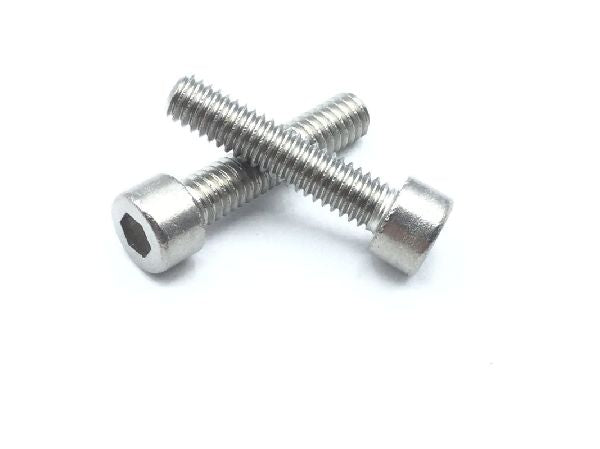

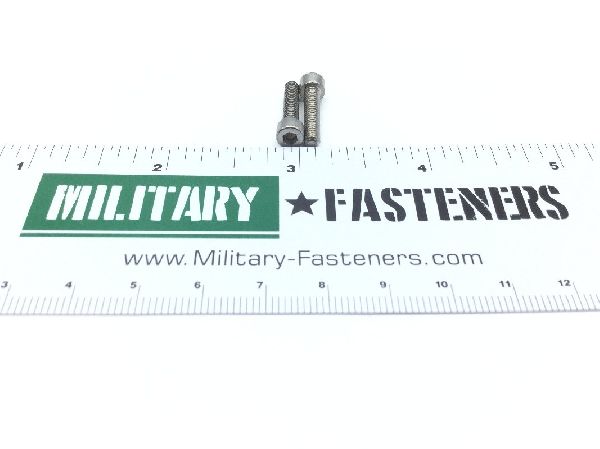

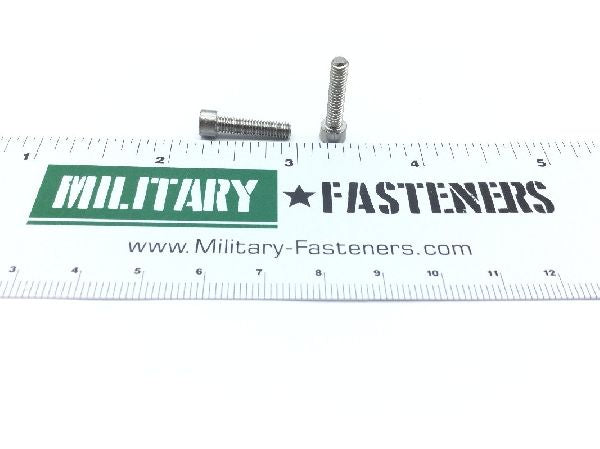

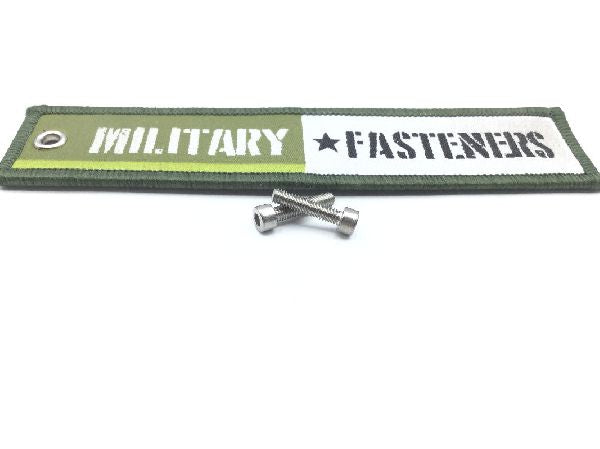

NAS1351C06-10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.609 inches and 0.641 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.134 inches and 0.138 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.559 inches and 0.641 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
