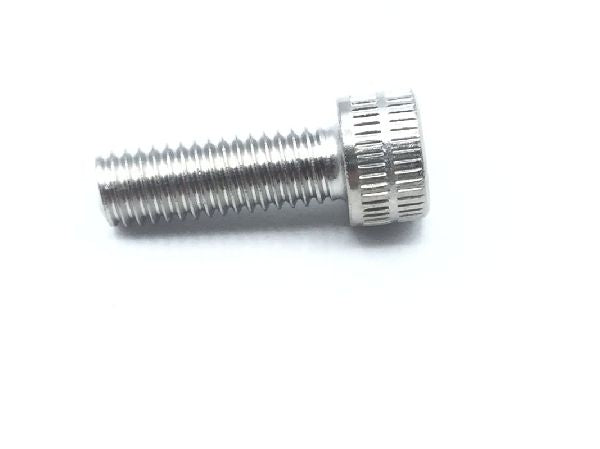

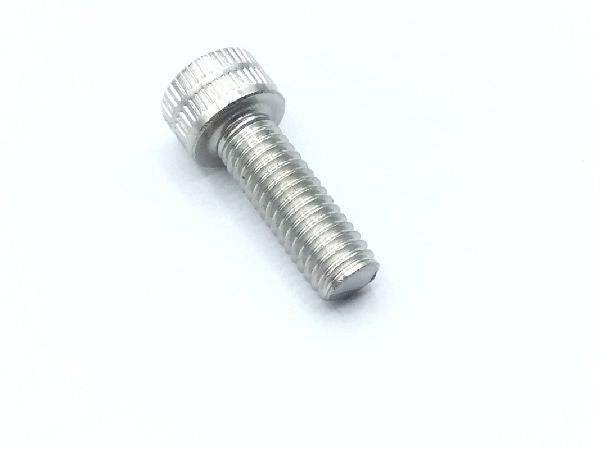

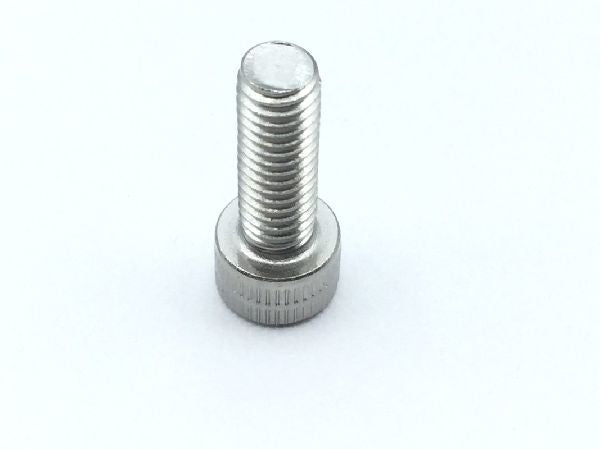

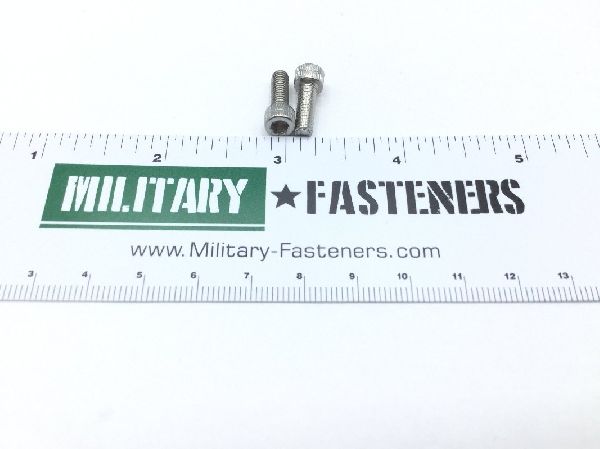

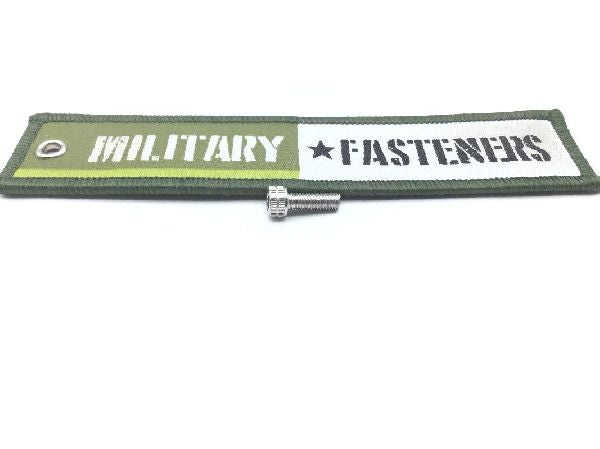

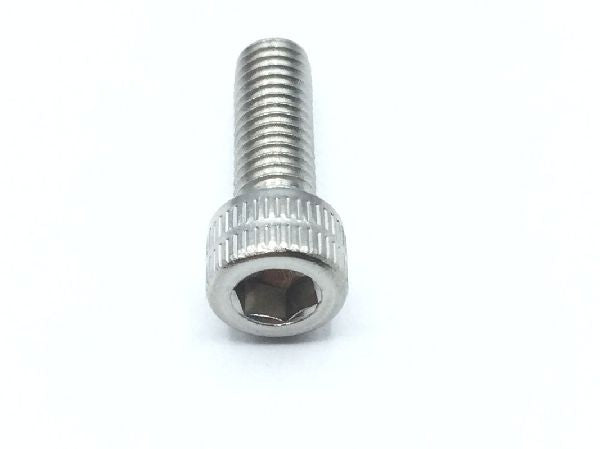

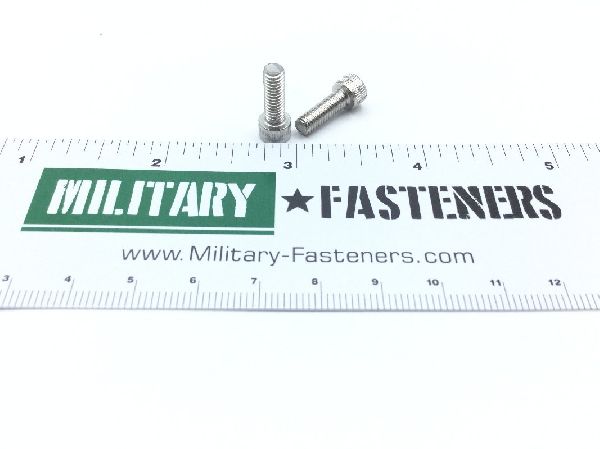

NAS1351C08-8 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.52

Units per Pack 20

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Head Style

Flat chamfer

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification 1st treatment response

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.159 inches and 0.164 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.414 inches and 0.500 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unrf
Width Across Flats: Between 0.140 inches and 0.142 inches
Head Diameter: Between 0.262 inches and 0.270 inches
