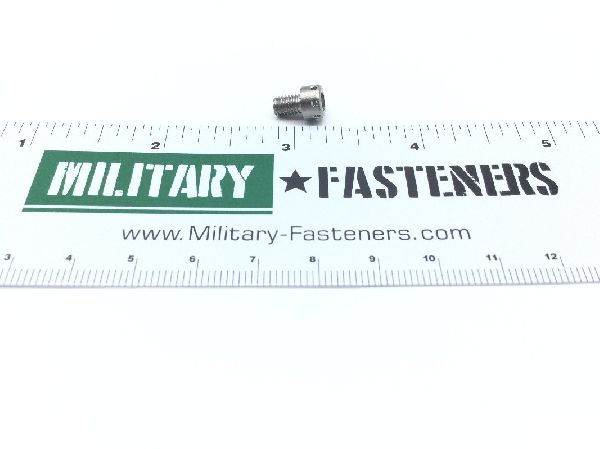

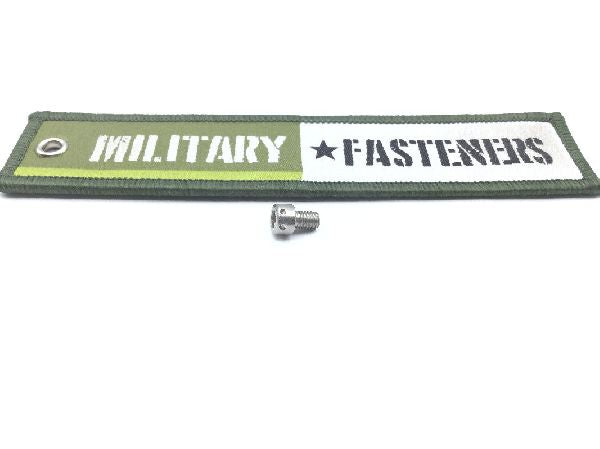

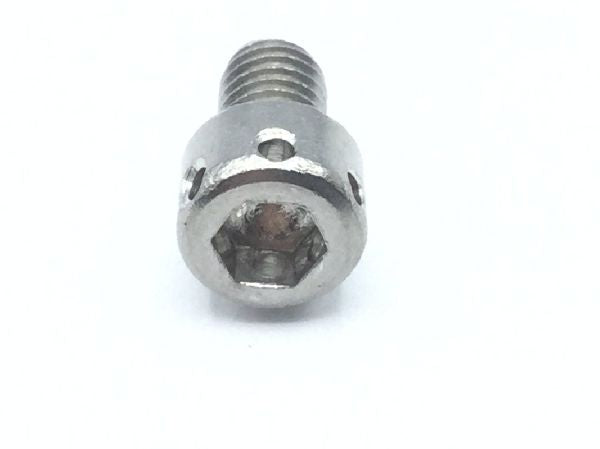

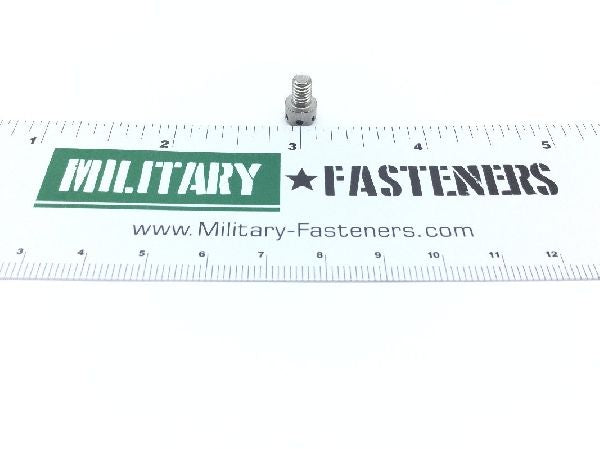

NAS1351C08H4 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $40.12

Units per Pack 1

Price per Pack $40.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $40.12

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.220 inches and 0.250 inches
Head Height: Between 0.159 inches and 0.164 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Astm a493 assn standard all material responses
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.194 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unrf
Width Across Flats: Between 0.1406 inches and 0.1426 inches
Head Diameter: Between 0.262 inches and 0.270 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
