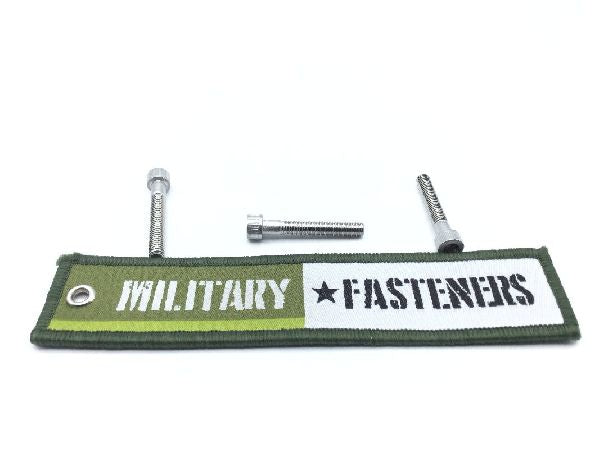

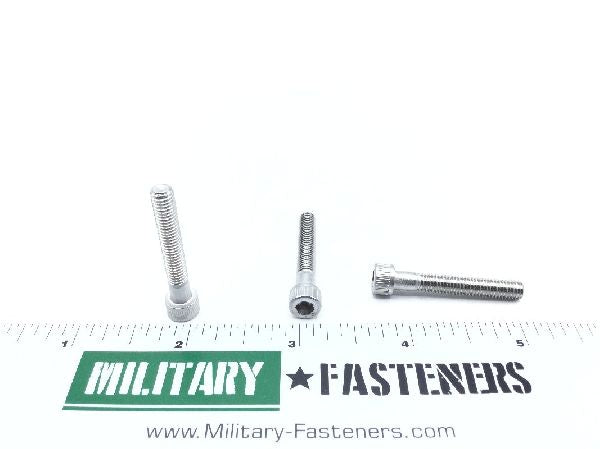

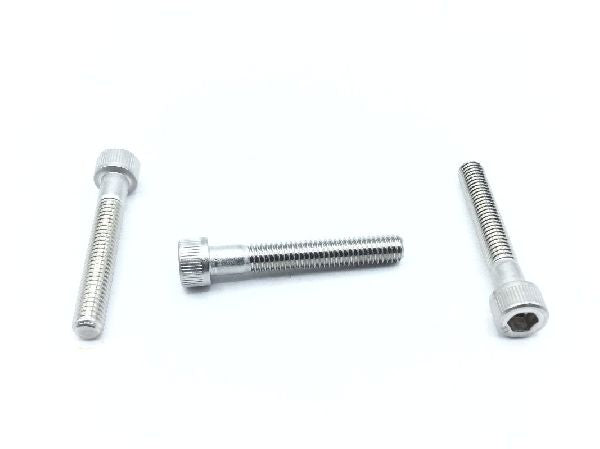

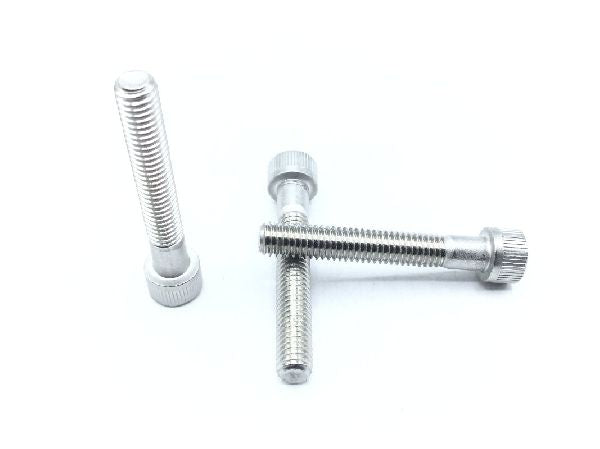

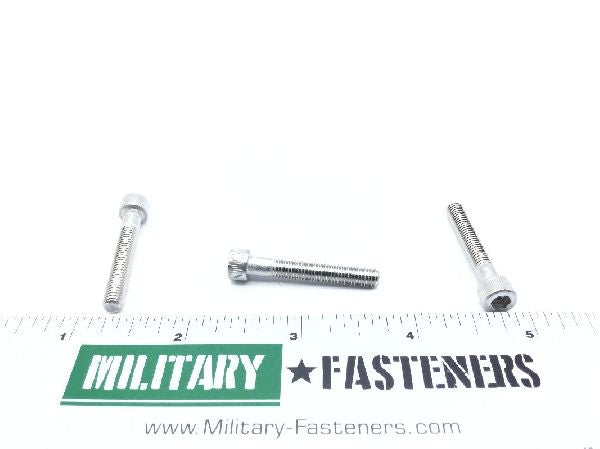

NAS1351C3-20 Socket Head Cap Screw
NAS1351C3-20 Socket Head Cap Screw (2)
NAS1351C3-20 Socket Head Cap Screw (3)
NAS1351C3-20 Socket Head Cap Screw (4)
NAS1351C3-20 Socket Head Cap Screw (5)
NAS1351C3-20 Socket Head Cap Screw (6)
NAS1351C3-20 Socket Head Cap Screw
NAS1351C3-20 Socket Head Cap Screw (2)
NAS1351C3-20 Socket Head Cap Screw (3)
NAS1351C3-20 Socket Head Cap Screw (4)
NAS1351C3-20 Socket Head Cap Screw (5)
NAS1351C3-20 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351C3-20 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $1.66
Units per Pack 25
Price per Pack $41.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $41.50
Add item to quote
Head Style
Flat chamfer
Material
Steel comp
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 1.234 inches and 1.281 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.185 inches and 0.190 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.859 inches and 0.906 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.156 inches and 0.159 inches
Head Diameter
Between 0.303 inches and 0.313 inches
