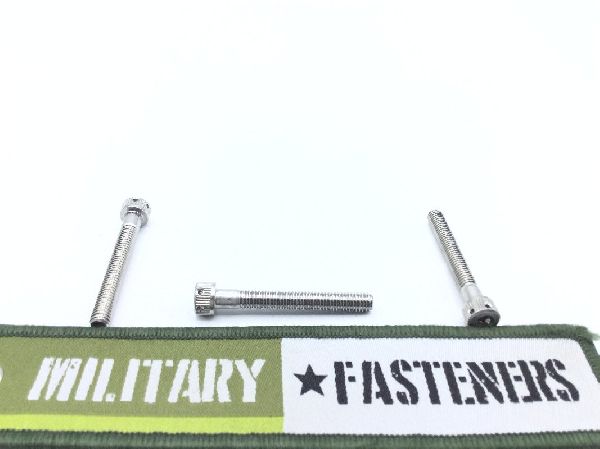

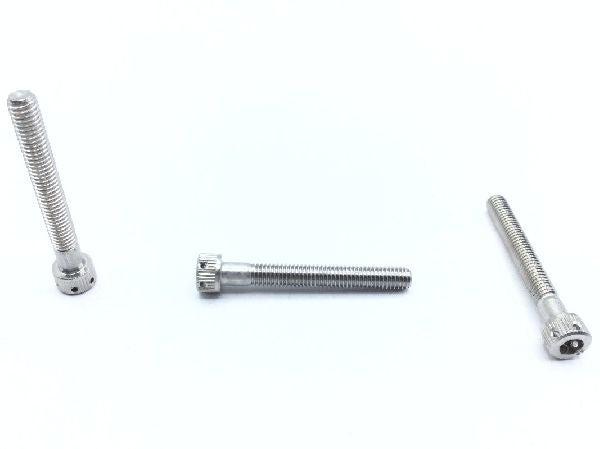

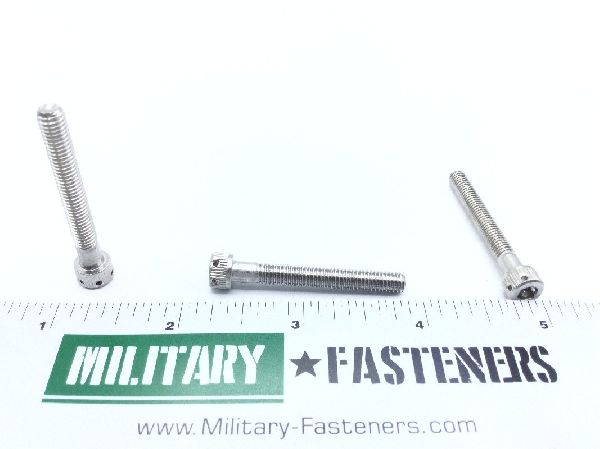

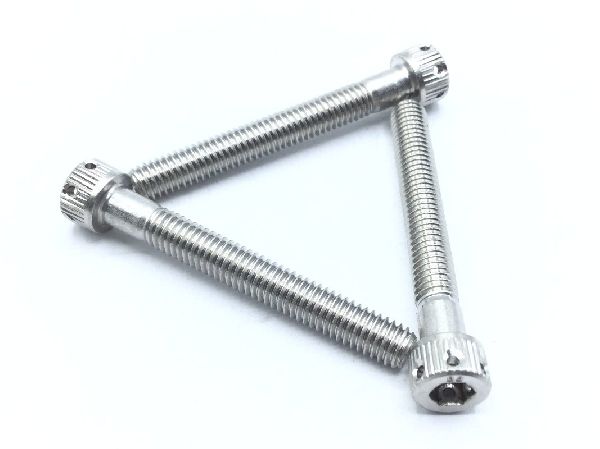

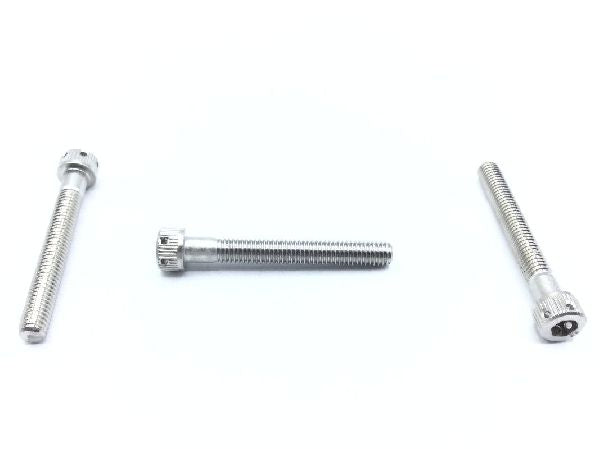

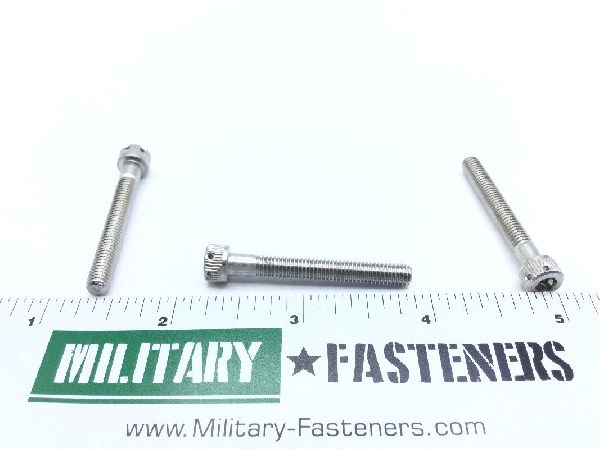

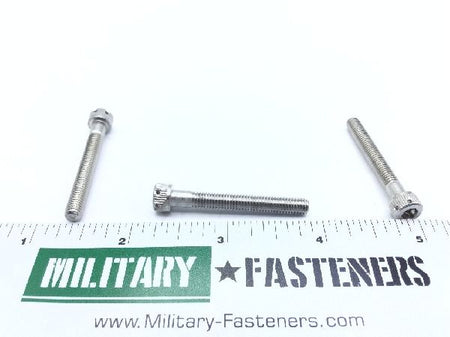

NAS1351C3H24 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.32

Units per Pack 5

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Flat chamfer

Material

Stainless Steel

Surface Treatment

Ff-s-86 federal specification single treatment response

Thread Class

Fastener Length: 1.500 inches
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Ff-s-86 federal specification single material response
Minimum Yield Strength: 1600 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.1900 inches
Thread Direction: Right-hand
Thread Length: 1.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.1562 inches and 0.1587 inches
Head Diameter: Between 0.312 inches and 0.313 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
