Home » NAS1351C3LNH8P Socket Head Cap Screw

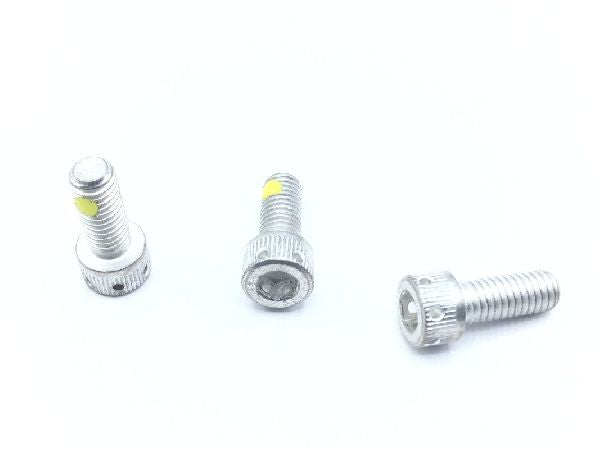

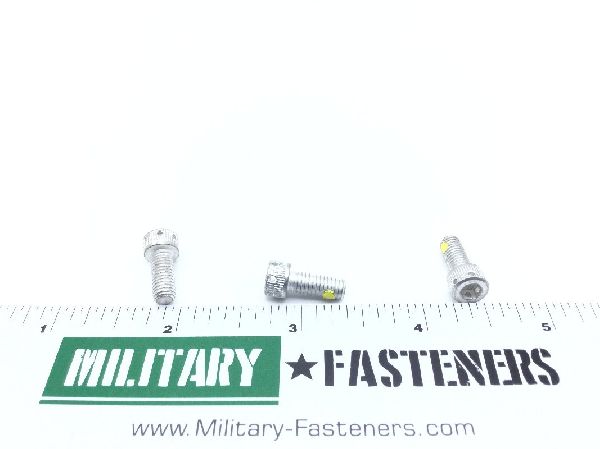

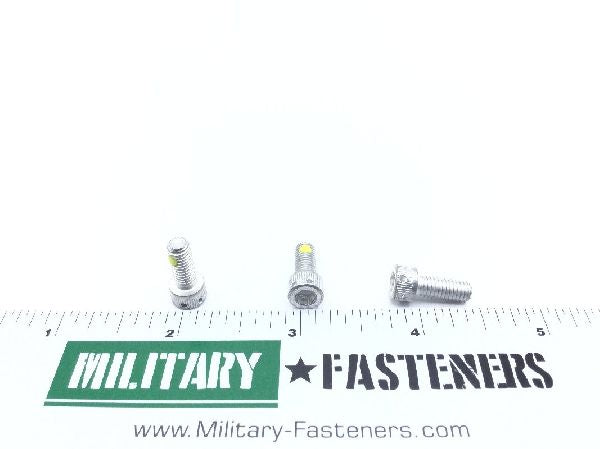

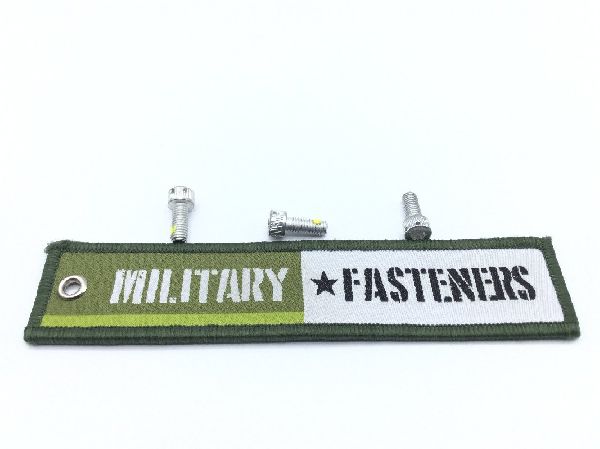

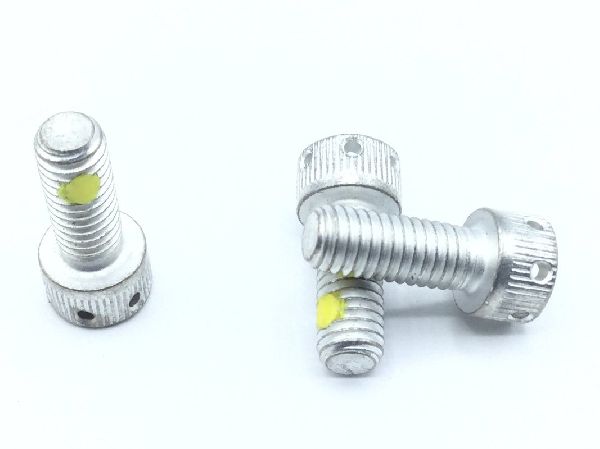

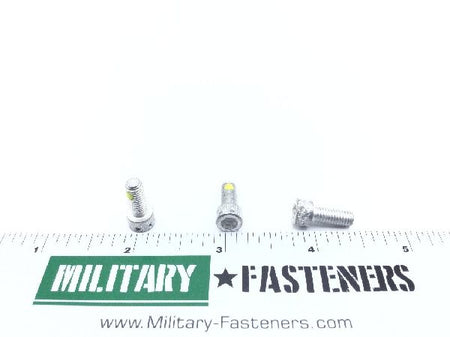

NAS1351C3LNH8P Socket Head Cap Screw
NAS1351C3LNH8P Socket Head Cap Screw (2)
NAS1351C3LNH8P Socket Head Cap Screw (3)
NAS1351C3LNH8P Socket Head Cap Screw (4)
NAS1351C3LNH8P Socket Head Cap Screw (5)
NAS1351C3LNH8P Socket Head Cap Screw (6)
NAS1351C3LNH8P Socket Head Cap Screw
NAS1351C3LNH8P Socket Head Cap Screw (2)
NAS1351C3LNH8P Socket Head Cap Screw (3)
NAS1351C3LNH8P Socket Head Cap Screw (4)
NAS1351C3LNH8P Socket Head Cap Screw (5)
NAS1351C3LNH8P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351C3LNH8P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $8.66
Units per Pack 5
Price per Pack $43.30
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $43.30
Add item to quote
Head Style
Flat chamfer
Material
Stainless Steel
Thread Class
3a
Fastener Length
0.50 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.185 inches and 0.19 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
80000 pounds per square inch
Special Features
This screw has safety wire holes in the head.
Specification Data
80205-nas1351 professional/industrial association standard
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.156 inches and 0.159 inches
Head Diameter
Between 0.303 inches and 0.312 inches
