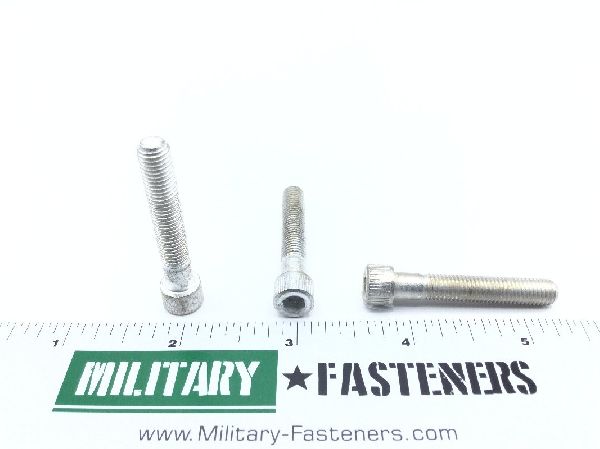

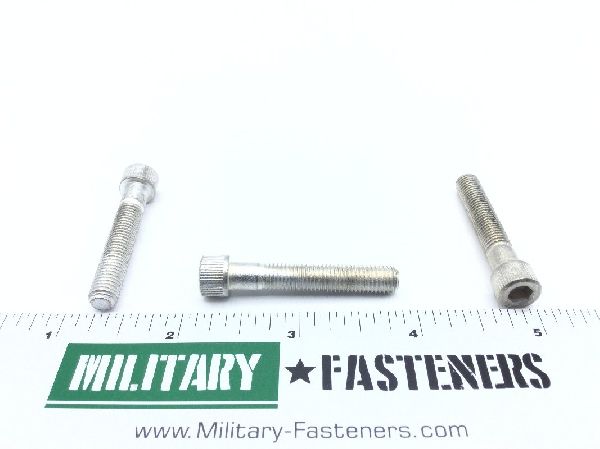

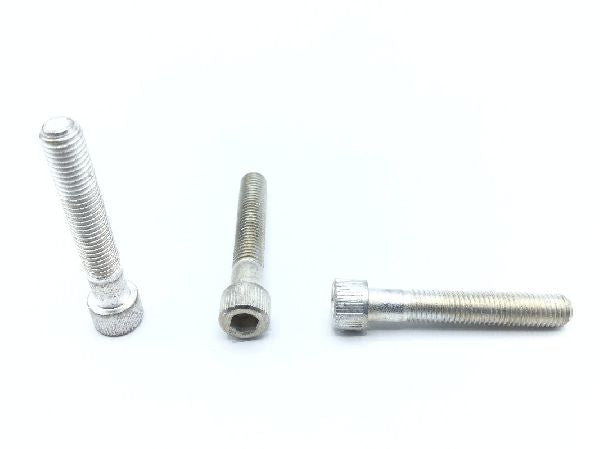

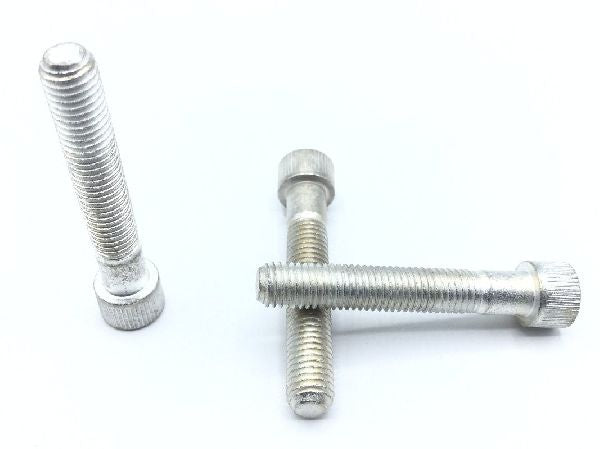

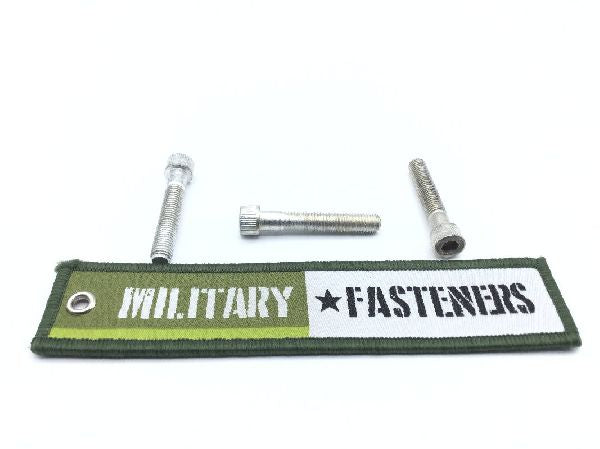

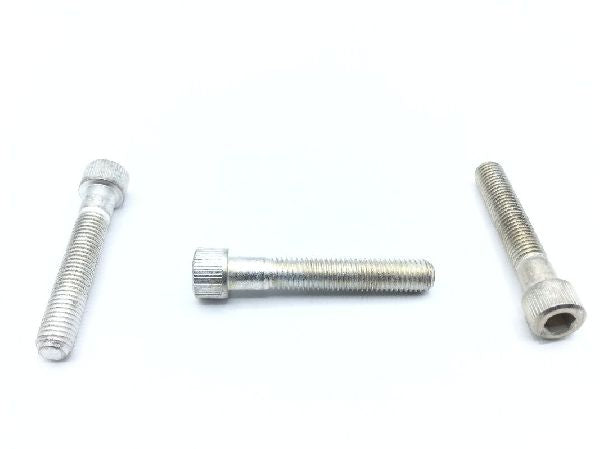

NAS1351C4-24P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Flat chamfer

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 1 qq-p-416

Thread Class

Fastener Length: Between 1.460 inches and 1.50 inches
Hardness Rating: 80.0 rockwell c
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.00 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unrf
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
