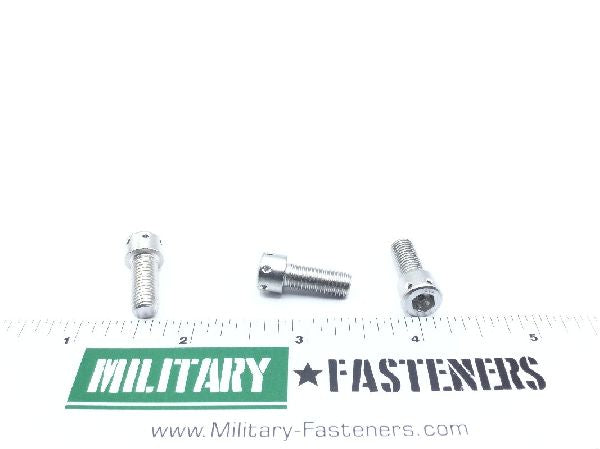

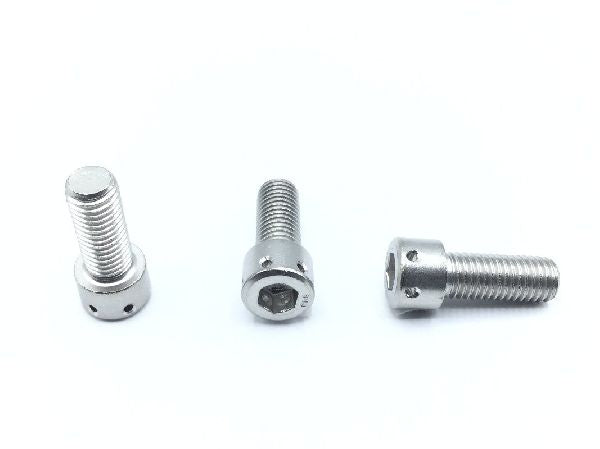

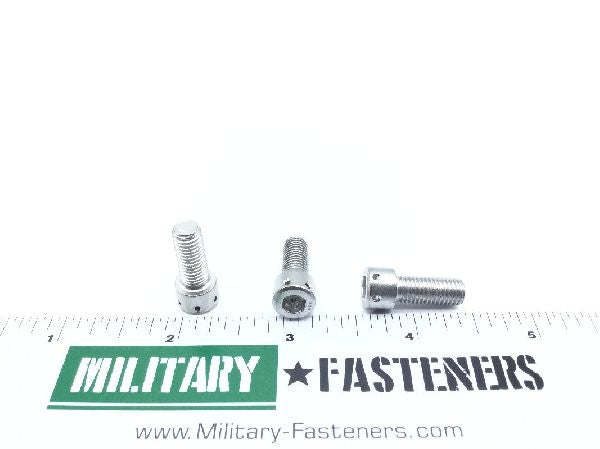

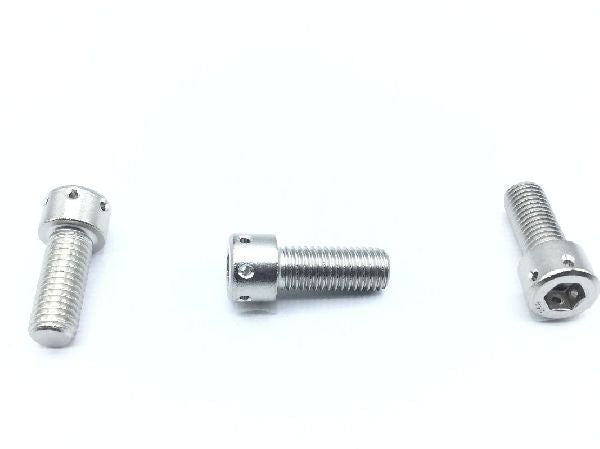

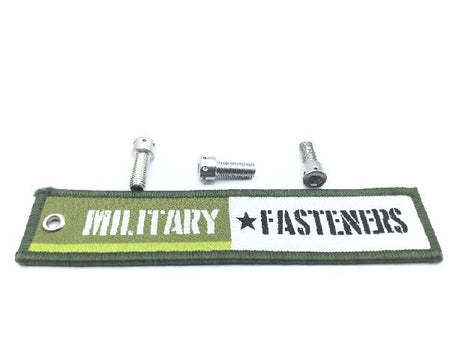

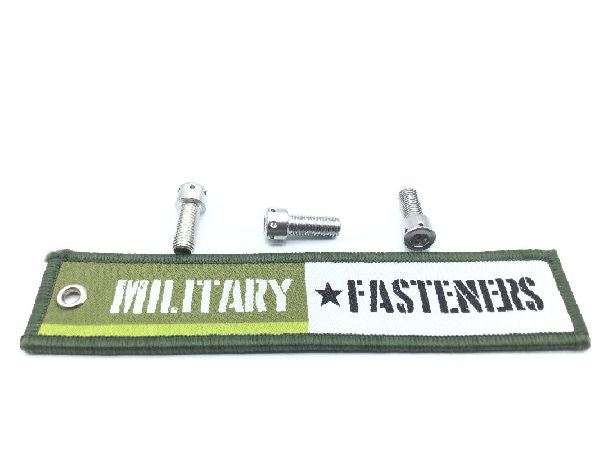

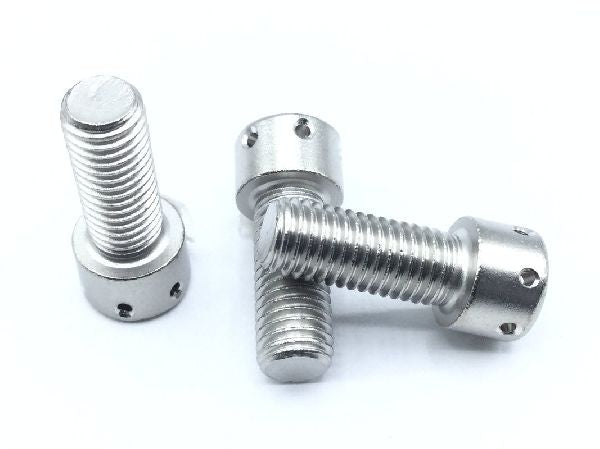

NAS1351C4H10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 0.625 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.244 inches and 0.250 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.187 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
Hole Diameter: 0.062 inches
