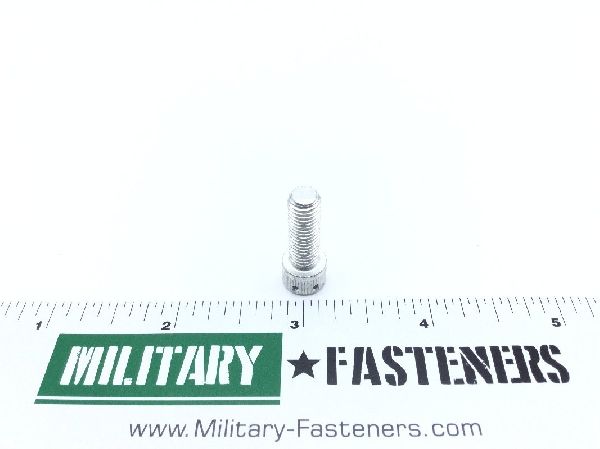

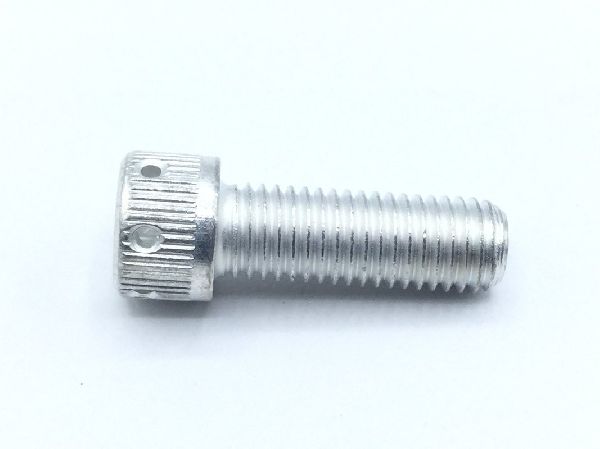

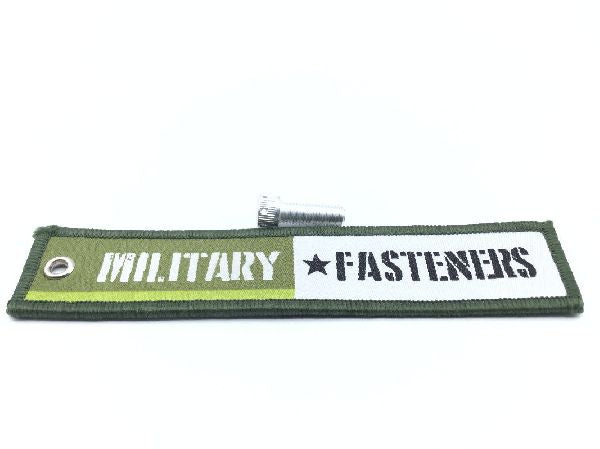

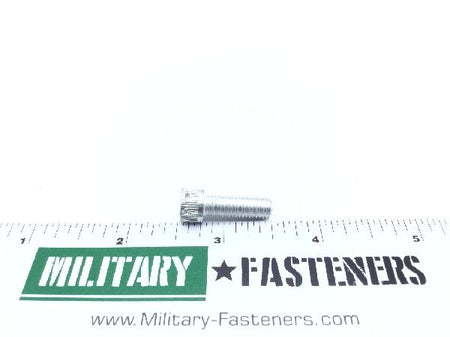

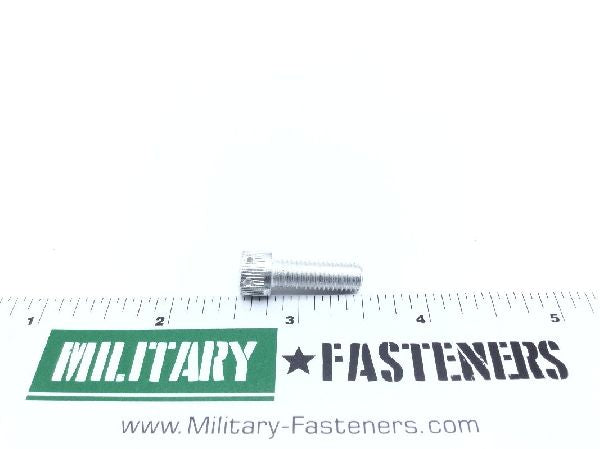

NAS1351C4H12P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $27.65

Units per Pack 1

Price per Pack $27.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $27.65

Add item to quote

Head Style

Flat chamfer

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 0.75 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.244 inches and 0.250 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Hexagon
Material Specification: Sae 66 assn standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.679 inches and 0.750 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
Hole Diameter: 0.047 inches
