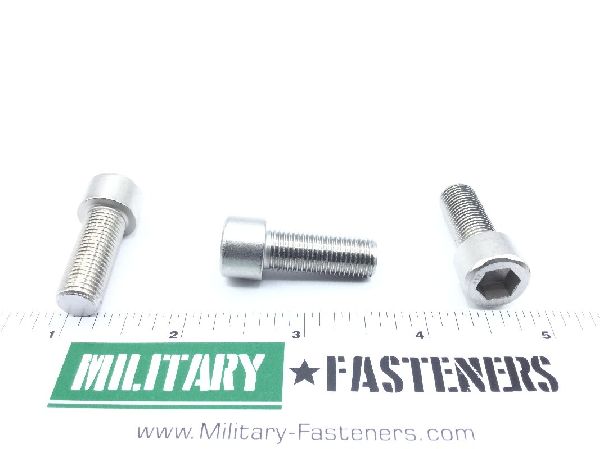

NAS1351C6-16 Socket Head Cap Screw

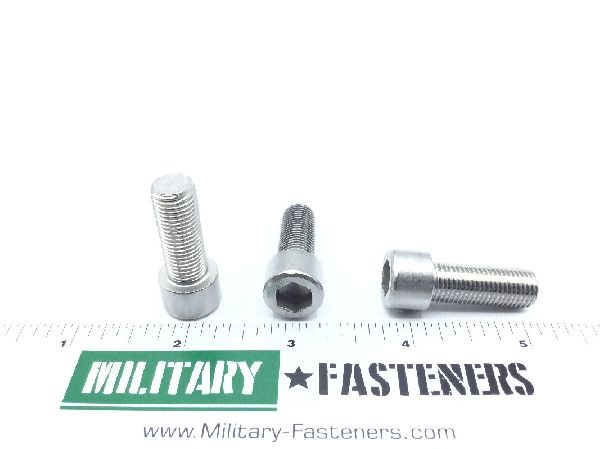

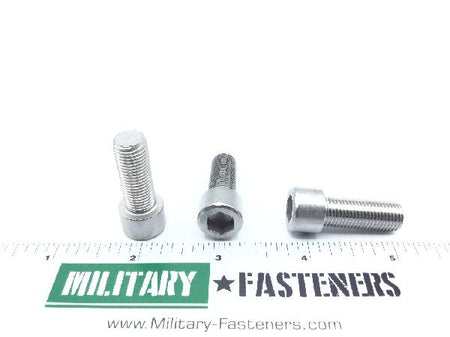

NAS1351C6-16 Socket Head Cap Screw (2)

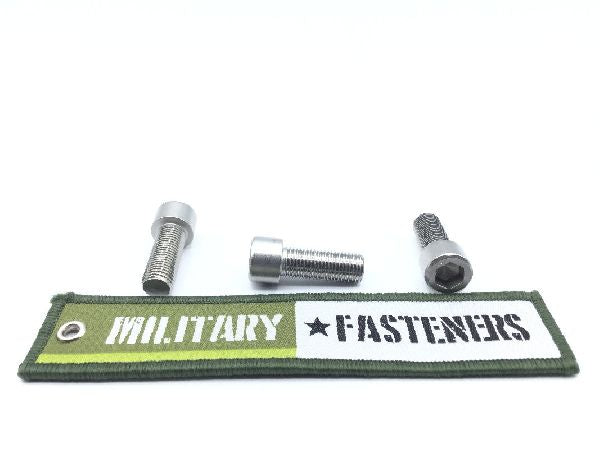

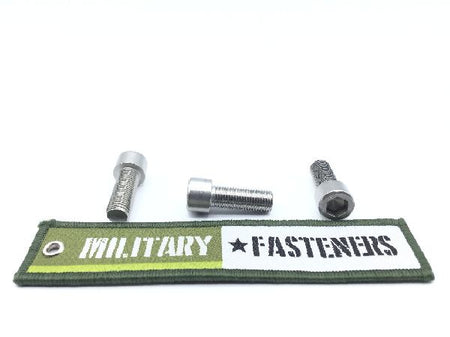

NAS1351C6-16 Socket Head Cap Screw (3)

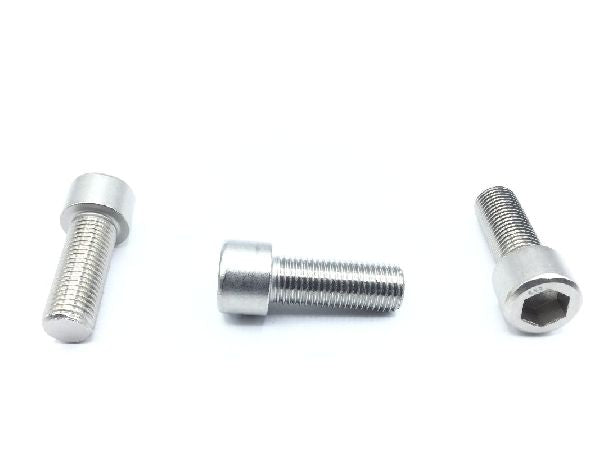

NAS1351C6-16 Socket Head Cap Screw (4)

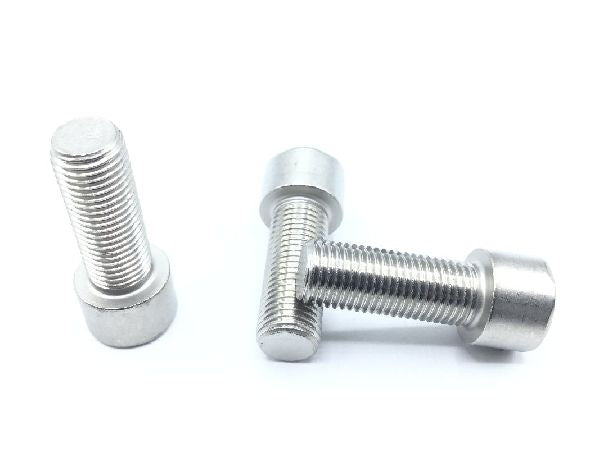

NAS1351C6-16 Socket Head Cap Screw (5)

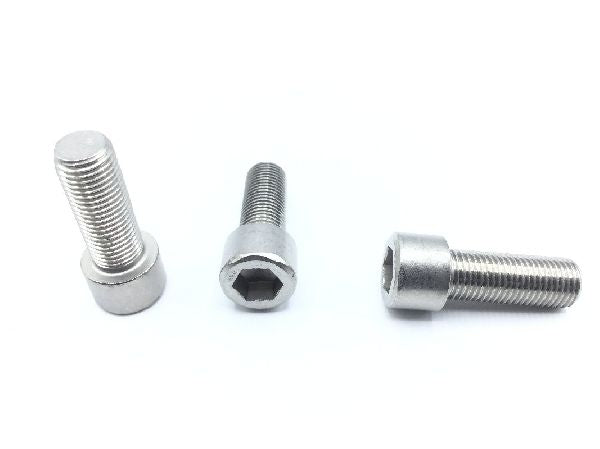

NAS1351C6-16 Socket Head Cap Screw (6)
NAS1351C6-16 Socket Head Cap Screw
NAS1351C6-16 Socket Head Cap Screw (2)
NAS1351C6-16 Socket Head Cap Screw (3)
NAS1351C6-16 Socket Head Cap Screw (4)
NAS1351C6-16 Socket Head Cap Screw (5)
NAS1351C6-16 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351C6-16 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan no. 2
Material
Stainless Steel
Surface Treatment
Qq-p-416 type 1 class 2 federal specification 1st treatment response or ff-s-86 federal specification 2nd treatment response
Thread Class
3a
Fastener Length
1.250 inches
Head Height
Between 0.368 inches and 0.375 inches
Internal Drive Style
Hexagon
Material Specification
Ff-s-86 federal specification single material response
Min. Tensile Strength (psi)
7025 pounds per square inch
Thread Diameter
0.3750 inches
Thread Direction
Right-hand
Thread Length
1.000 inches
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Across Flats
Between 0.312 inches and 0.316 inches
Head Diameter
Between 0.550 inches and 0.562 inches
