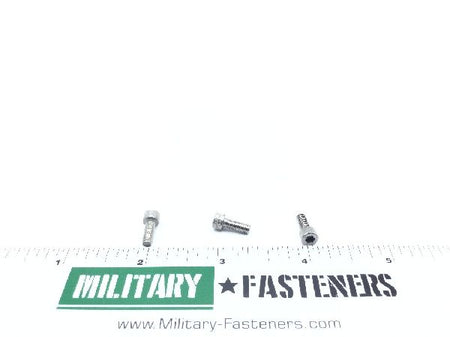

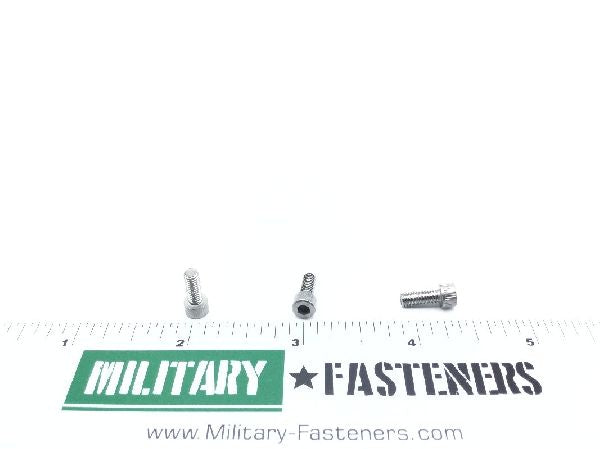

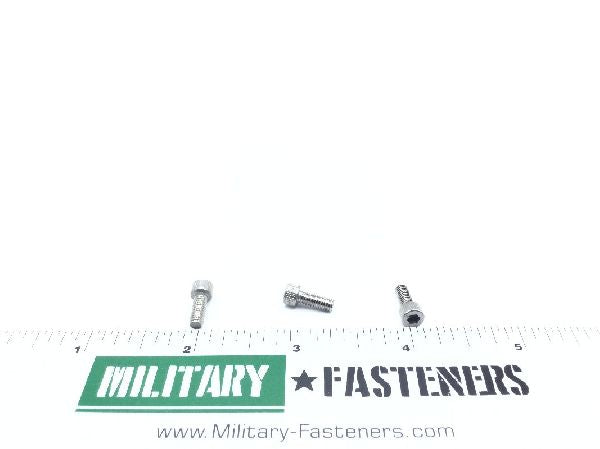

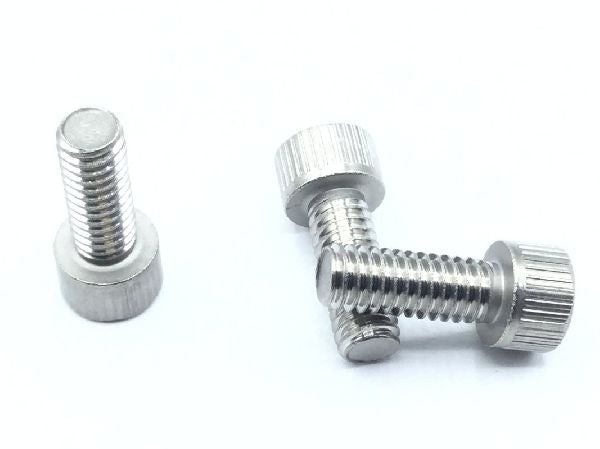

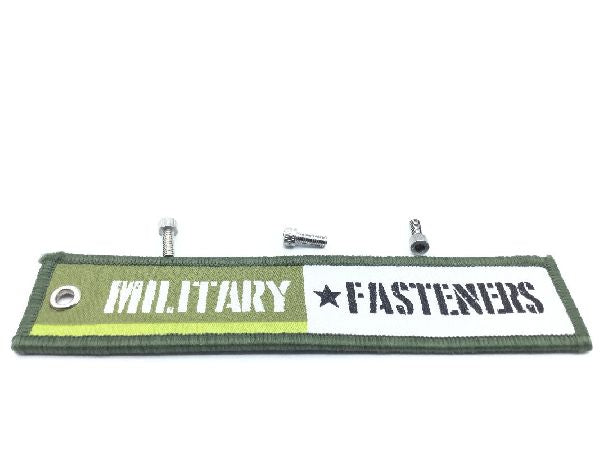

NAS1351N06-6 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $6.24

Units per Pack 10

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.345 inches and 0.375 inches
Head Height: Between 0.134 inches and 0.138 inches
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.295 inches and 0.375 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unrf
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
